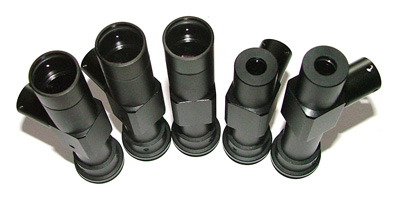

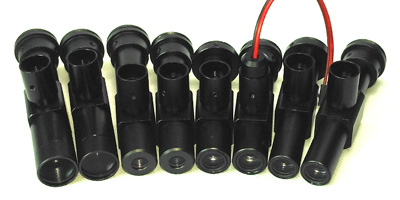

定倍镜头,同轴光镜头 同轴光定倍镜头可以有非同轴光的规格，但非同轴光的不一定能做成同轴光的方式。 同轴光镜头 非同轴光镜头 同轴光镜头26 其它类镜头 I型同轴光，直型同轴光镜头，普通同轴光镜头:，适用相机1/4'至2/3' 1.普通同轴光镜头与远心的区别在于非远心设计，但在低倍时为达到照明均匀，其孔径必须大于所观察物体最大尺寸， 2.普通同轴光镜头其倍率比较大，目前提供放大率大于0.5X，所设计镜片孔径比较小。大部份镜头可以同时提供同轴光与非同轴规格。 3.CCD标准接口,适用CCD尺寸:2/3',1/1.8',1/2',1/3',1/4',1/6'，最大支持芯片尺寸祥见下表; 4.镜头头部外径16，18，20安装外径为16或18；头部外径22，26的安装外径为22mm; 5.同轴光照明,附送普通LED同轴照明灯源（不含3V20mA电源)，有内部8mm,10mm,14mm的光源接口，或可选8mm光纤转接口; 6.可以按用户要求定制其它倍率及工作距的镜头。 产品列表说明： 产品按放大率从小到大排列，相同放大率按工作距从小到大排列。 外形图在最后一列，图中WD表示工作距。型号中I表示直型，接着是放大率，X后面是工作距， C表示同轴照明，最后面加数字表示头部外径或安装外径。最右边是图纸链接。 型号 倍数 工作距 景深 数值孔径 分辨率 孔径F# 畸变% 镜身L0 L1 L2 d1 d2 接口 最大接收器 外形图下载 I0.3X90C26 0.30 90 4.94 0.027 0.012 5.6 0.48 89.2 41.0 17.2 26 22 C 1/3' I0.3X90C26 I0.5X105C20 0.47 105 4.05 0.021 0.016 11.2 0.84 111.1 36.6 34.5 20 16/18 C 1/2' I0.5X105C20 I0.5X110C20 0.50 108 2.50 0.032 0.010 7.8 0.09 96.6 37.1 19.5 20 18 C 1/2' I0.5X110C20 J0.5X110C16 0.50 110 2.67 0.030 0.011 8.3 0.84 74.9 21.5 22.4 16/18 16 C 1/3' J0.5X110C16 J0.5X110C16 0.50 110 2.67 0.030 0.011 8.3 0.84 74.9 21.5 22.4 16/18 16 C 1/3' J0.5X110C16 I0.5X135C20 0.50 135 1.60 0.050 0.007 5.0 0.05 86.1 37.1 9.0 20 18 C 1/2' I0.5X135C20 I0.5X150C20 0.50 150 1.78 0.045 0.007 5.6 0.10 138.6 36.6 62.0 20 16/18 C 1/2' I0.5X150C20 I0.5X200C20 0.50 200 2.50 0.032 0.010 7.8 0.15 132.2 36.6 55.6 20 18 C 1/3' I0.5X200C20 I0.5X200C20 0.50 200 2.50 0.032 0.010 7.8 0.15 132.2 36.6 55.6 20 18 C 1/3' I0.5X200C20 I0.5X210C20 0.50 210 2.50 0.032 0.010 7.8 0.15 132.2 36.6 55.6 20 18 C 1/3' I0.5X210C20 I0.5X258C20 0.50 258 2.96 0.027 0.012 9.3 0.30 120.4 36.6 43.8 20 16/18 C 2/3' I0.5X258C20 I0.5X350C20 0.50 350 3.81 0.021 0.016 11.9 0.26 111.1 36.6 34.5 20 16/18 C 1/2' I0.5X350C20 I0.6X110C20 0.60 110 2.22 0.030 0.011 10.0 0.30 96.6 37.1 19.5 20 18 C 1/2' I0.6X110C20 I0.6X300C20 0.60 300 4.17 0.016 0.021 18.8 0.29 120.4 36.6 43.8 20 16/18 C 1/2' I0.6X300C20 I0.7X210C20 0.70 210 1.79 0.032 0.010 10.9 0.08 138.6 36.6 62.0 20 16/18 C 1/2' I0.7X210C20 I0.75X250C20 0.75 250 2.13 0.025 0.013 15.0 0.30 89.4 37.1 12.3 20 18 C 1/2' I0.75X250C20 I0.8X60C18 0.80 60 1.00 0.050 0.007 8.0 0.10 76.5 21.5 15.0 16/18 18 C 1/2.5' I0.8X60C18 I0.8X115C 0.80 115 1.11 0.045 0.007 8.9 0.20 89.5 21.5 28.0 16/18 16/18 C 1/3' I0.8X115C I0.8X600C20 0.80 600 3.33 0.015 0.022 26.7 0.30 138.6 36.6 62.0 20 16/18 C 1/2' I0.8X600C20 I1X60C 1.00 60 0.80 0.050 0.007 10.0 0.10 89.5 21.5 28.0 16/18 16/18 C 1/2' I1X60C J1X60C18 1.00 60 1.00 0.040 0.008 12.5 0.38 48.1 1.1 21.0 17 18 C 1/2' J1X60C18 I1X62C 1.00 62 1.33 0.030 0.011 16.7 0.30 46.5 6.5 0.0 16 16 C 1/2' I1X62C I1X68C 1.00 68 0.80 0.050 0.007 10.0 0.01 102.0 34.0 28.0 16 16/18 C 1/2' I1X68C I1X68C20 1.00 68 0.80 0.050 0.007 10.0 0.33 111.6 37.1 34.5 20 16/18 C 1/2' I1X68C20 I1X90C18 1.00 89 0.80 0.050 0.007 10.0 0.01 81.0 21.5 19.5 16/18 18 C 1/2' I1X90C18 I1X108C 1.00 109 1.08 0.037 0.009 13.5 0.01 96.0 21.5 34.5 16/18 16/18 C 1/2' I1X108C I1X135C 1.00 135 1.35 0.030 0.011 16.9 0.33 74.5 6.5 28.0 16 16/18 C 1/2' I1X135C I1X140C 1.00 140 1.40 0.029 0.012 17.5 0.37 84.9 1.1 43.8 17 16/18 C 1/2' I1X140C I1X150C20 1.00 150 0.98 0.041 0.008 12.2 0.57 96.6 37.1 19.5 20 18 C 1/2' I1X150C20 I1X150C 1.00 150 1.50 0.027 0.013 18.8 0.33 89.5 21.5 28.0 16/18 16/18 C 1/2' I1X150C I1X180C 1.00 180 1.48 0.027 0.012 18.5 0.46 89.5 21.5 28.0 16/18 16/18 C 1/2.3' I1X180C I1X188C 1.00 189 1.89 0.021 0.016 23.6 0.21 102.0 34.0 28.0 16 16/18 C 1/2' I1X188C I1X200C 1.00 200 2.00 0.020 0.017 25.0 0.18 89.5 21.5 28.0 16/18 16/18 C 1/2' I1X200C I1X215C 1.00 215 1.60 0.025 0.013 20.0 0.14 102.0 34.0 28.0 16 16/18 C 1/2' I1X215C 型号 倍数 工作距 景深 数值孔径 分辨率 孔径F# 畸变% 镜身L0 L1 L2 d1 d2 接口 最大接收器 外形图下载 I1X225C 1.00 225 2.22 0.018 0.019 27.8 0.14 102.0 34.0 28.0 16 16/18 C 1/2' I1X225C I1X250C 1.00 250 2.50 0.016 0.021 31.3 0.11 105.3 21.5 43.8 16/18 16/18 C 1/2' I1X250C I1X285C 1.00 285 2.11 0.019 0.018 26.3 0.05 102.0 34.0 28.0 16 16/18 C 1/2' I1X285C I1X300C20 1.00 300 2.50 0.016 0.021 31.3 0.25 132.2 36.6 55.6 20 18 C 1/2' I1X300C20 I1X400C20 1.00 400 2.00 0.020 0.017 25.0 0.10 132.2 36.6 55.6 20 18 C 1/2' I1X400C20 I1X500C20 1.00 500 2.22 0.018 0.019 27.8 0.40 138.6 36.6 62.0 20 16/18 C 1/2' I1X500C20 I1X105C 1.10 103 0.94 0.039 0.009 14.2 0.01 102.0 34.0 28.0 16 16/18 C 1/2' I1X105C I1.2X50C 1.18 70 0.68 0.050 0.007 11.8 0.03 96.0 21.5 34.5 16/18 16/18 C 1/2' I1.2X50C I1.2X68C 1.20 68 0.71 0.047 0.007 12.8 0.01 102.0 34.0 28.0 16 16/18 C 1/2' I1.2X68C I1.2X70C 1.20 70 0.71 0.047 0.007 12.8 0.01 102.0 34.0 28.0 16 16/18 C 1/2' I1.2X70C I1.2X100C 1.20 100 0.83 0.040 0.008 15.0 0.01 105.3 21.5 43.8 16/18 16/18 C 1/2' I1.2X100C I1.2X110C 1.20 110 0.95 0.035 0.010 17.0 0.01 123.5 21.5 62.0 16/18 16/18 C 1/2' I1.2X110C I1.2X120C 1.20 120 1.08 0.031 0.011 19.4 0.19 102.0 34.0 28.0 16 16/18 C 1/2' I1.2X120C I1.2X170C 1.20 170 1.23 0.027 0.012 22.2 0.14 89.5 21.5 28.0 16/18 16/18 C 1/2' I1.2X170C I1.2X175C 1.20 175 1.23 0.027 0.012 22.2 0.14 117.8 34.0 43.8 16 16/18 C 1/2' I1.2X175C I1.2X200C 1.20 200 1.52 0.022 0.015 27.3 0.03 102.0 34.0 28.0 16 16/18 C 1/2' I1.2X200C I1.2X250C 1.20 250 1.59 0.021 0.016 28.6 0.05 102.0 34.0 28.0 16 16/18 C 1/2' I1.2X250C I1.2X300C26 1.20 300 1.33 0.025 0.013 24.0 0.70 135.5 41.0 63.5 26 22 C 1' I1.2X300C26 I1.25X150C 1.25 150 1.07 0.030 0.011 20.8 0.10 102.0 34.0 28.0 16 16/18 C 1/2' I1.25X150C I1.3X238C 1.32 238 1.78 0.017 0.020 38.8 0.05 102.0 34.0 28.0 16 16/18 C 1/2' I1.3X238C I1.3X190C 1.33 190 2.01 0.015 0.022 44.3 0.25 105.3 21.5 43.8 16/18 16/18 C 1/2' I1.3X190C I1.4X52C18 1.37 52 0.61 0.048 0.014 14.3 0.30 58.8 6.5 12.3 16 18 C 1/2' I1.4X52C18 I1.4X230C 1.37 52 1.72 0.017 0.039 40.3 0.05 102.0 34.0 28.0 16 16/18 C 1/2' I1.4X230C I1.5X250C 1.45 250 1.72 0.016 0.021 45.3 0.04 108.5 6.5 62.0 16 16/18 C 1/2' I1.5X250C I1.5X220C 1.46 220 1.52 0.018 0.019 40.6 0.06 102.0 34.0 28.0 16 16/18 C 1/2' I1.5X220C I1.5X60C18 1.50 60 0.67 0.040 0.017 18.8 0.36 61.5 6.5 15.0 16 18 C 1/2' I1.5X60C18 J1.5X65C16 1.50 65 0.63 0.042 0.008 17.9 0.53 52.0 6.5 14.5 16 16 C 1/2' J1.5X65C16 I1.5X68C20 1.50 68 0.44 0.060 0.011 12.5 0.26 120.9 37.1 43.8 20 16/18 C 2/3' I1.5X68C20 I1.5X75C 1.50 75 0.53 0.050 0.007 15.0 0.01 102.0 34.0 28.0 16 16/18 C 1/2' I1.5X75C I1.5X90C 1.50 90 0.61 0.044 0.008 17.0 0.01 123.5 21.5 62.0 16/18 16/18 C 1/2' I1.5X90C I1.5X110C20 1.50 110 0.44 0.060 0.006 12.5 0.01 120.9 37.1 43.8 20 16/18 C 1/2' I1.5X110C20 I1.5X115C 1.50 115 0.76 0.035 0.010 21.4 0.36 102.0 34.0 28.0 16 16/18 C 1/2' I1.5X115C I1.5X135C 1.50 135 0.81 0.033 0.010 22.7 0.16 89.5 21.5 28.0 16/18 16/18 C 1/2' I1.5X135C I1.5X150C 1.50 150 1.03 0.026 0.013 28.8 0.16 102.0 34.0 28.0 16 16/18 C 1/2' I1.5X150C I1.5X155C 1.50 155 1.03 0.026 0.013 28.8 0.16 102.0 34.0 28.0 16 16/18 C 1/2' I1.5X155C 型号 倍数 工作距 景深 数值孔径 分辨率 孔径F# 畸变% 镜身L0 L1 L2 d1 d2 接口 最大接收器 外形图下载 I1.5X180C20 1.50 180 0.67 0.040 0.008 18.8 0.32 111.6 37.1 34.5 20 16/18 C 1/2' I1.5X180C20 I1.5X190C 1.50 190 1.35 0.020 0.017 37.9 0.06 96.0 21.5 34.5 16/18 16/18 C 1/2' I1.5X190C I1.5X200C 1.50 200 1.48 0.018 0.019 41.7 0.06 102.0 34.0 28.0 16 16/18 C 1/2' I1.5X200C I1.5X210C 1.50 210 1.35 0.020 0.017 37.9 0.06 102.0 34.0 28.0 16 16/18 C 1/2' I1.5X210C I1.6X49C18 1.58 49 0.84 0.030 0.011 26.3 0.20 66.0 6.5 19.5 16 18 C 1/2' I1.6X49C18 I1.6X90C 1.60 90 0.78 0.032 0.010 25.0 0.45 89.5 21.5 28.0 16/18 16/18 C 1/2' I1.6X90C I1.6X170C 1.60 170 0.78 0.032 0.010 25.0 0.10 102.0 34.0 28.0 16 16/18 C 1/2' I1.6X170C I1.6X210C 1.60 200 1.26 0.020 0.017 40.4 0.06 102.0 34.0 28.0 16 16/18 C 1/2' I1.6X210C I1.7X130C 1.70 130 0.71 0.033 0.010 25.8 0.20 117.8 34.0 43.8 16 16/18 C 1/2' I1.7X130C I1.8X71C 1.80 71 0.40 0.055 0.006 16.4 0.04 117.8 34.0 43.8 16 16/18 C 1/2' I1.8X71C I2X27C 2.00 27 0.35 0.057 0.006 17.5 0.50 69.1 1.1 28.0 17 16/18 C 1/2' I2X27C I2X45C 2.00 45 0.42 0.048 0.007 20.8 0.15 81.0 6.5 34.5 16 16/18 C 1/2' I2X45C I2X65C 2.00 65 0.29 0.069 0.005 14.5 0.20 74.5 6.5 28.0 16 16/18 C 1/2' I2X65C I2X65C 2.00 65 0.49 0.041 0.008 24.4 0.20 74.5 6.5 28.0 16 16/18 C 1/2' I2X65C I2X68C 2.00 69 0.35 0.057 0.006 17.5 0.01 132.1 21.5 70.6 16/18 18 C 2/3' I2X68C I2X85C 2.00 85 0.43 0.047 0.007 21.3 0.35 102.0 34.0 28.0 16 16/18 C 2/3' I2X85C I2X110C 2.00 110 0.50 0.040 0.008 25.0 0.17 96.0 21.5 34.5 16/18 16/18 C 1/2' I2X110C I2X110C16 2.00 110 0.51 0.039 0.009 25.6 0.15 102.0 34.0 28.0 16 16/18 C 1/2' I2X110C16 I2X116C 2.00 116 0.59 0.034 0.010 29.4 0.20 108.5 34.0 34.5 16 16/18 C 1/2' I2X116C I2X118C20 2.00 118 0.40 0.050 0.007 20.0 0.50 120.9 37.1 43.8 20 16/18 C 1/2' I2X118C20 I2X128C 2.00 127 0.61 0.033 0.010 30.3 0.07 89.5 21.5 28.0 16/18 16/18 C 1/2' I2X128C I2X150C20 2.00 150 0.49 0.041 0.008 24.4 0.43 120.9 37.1 43.8 20 16/18 C 1/2' I2X150C20 I2X150C 2.00 150 0.71 0.028 0.012 35.7 0.08 102.0 34.0 28.0 16 16/18 C 1/2' I2X150C I2X172C 2.00 172 0.87 0.023 0.015 43.5 0.05 108.5 6.5 62.0 16 16/18 C 1/2' I2X172C I2X195C 2.00 195 1.00 0.020 0.017 50.0 0.04 117.8 34.0 43.8 16 16/18 C 1/2' I2X195C I2X200C20 2.00 200 0.63 0.032 0.010 31.3 0.15 156.5 36.6 79.9 20 18 C 1/2' I2X200C20 I2X220C 2.00 220 1.11 0.018 0.019 55.6 0.03 129.6 34.0 55.6 16 18 C 1/2' I2X220C I2X230C20 2.00 230 0.65 0.031 0.011 32.3 0.16 156.5 36.6 79.9 20 18 C 1/2' I2X230C20 I2X300C20 2.00 300 0.77 0.026 0.015 38.5 0.10 156.5 36.6 79.9 20 18 C 2/3' I2X300C20 I2.5X65C18 2.44 65 0.27 0.060 0.011 20.3 0.42 61.5 6.5 15.0 16 18 C 1/2' I2.5X65C18 I2.5X90C 2.50 90 0.36 0.044 0.008 28.4 0.35 102.0 34.0 28.0 16 16/18 C 2/3' I2.5X90C I2.5X150C 2.50 150 0.47 0.034 0.010 36.8 0.03 117.1 21.5 55.6 16/18 18 C 2/3' I2.5X150C I2.8X126C 2.80 126 0.45 0.032 0.010 43.8 0.07 108.5 34.0 34.5 16 16/18 C 2/3' I2.8X126C I3X30C 3.00 30 0.13 0.100 0.003 15.0 0.01 117.8 34.0 43.8 16 16/18 C 1/2' I3X30C J3X65C16 3.00 65 0.44 0.030 0.011 50.0 0.84 70.1 21.5 17.6 16/18 16 C 1/2' J3X65C16 型号 倍数 工作距 景深 数值孔径 分辨率 孔径F# 畸变% 镜身L0 L1 L2 d1 d2 接口 最大接收器 外形图下载 I3X68C 3.00 68 0.22 0.060 0.006 25.0 0.10 90.3 6.5 43.8 16 16/18 C 1/2' I3X68C I3X88C 3.00 88 0.38 0.035 0.010 42.9 0.10 102.0 34.0 28.0 16 16/18 C 1/2' I3X88C I3X98C 3.00 98 0.33 0.040 0.008 37.5 0.11 117.8 34.0 43.8 16 16/18 C 1/2' I3X98C I3X116C 3.00 116 0.39 0.034 0.010 44.1 0.05 108.5 34.0 34.5 16 16/18 C 1/2' I3X116C I3X140C 3.00 140 0.46 0.029 0.012 51.7 0.03 123.5 21.5 62.0 16/18 16/18 C 1/2' I3X140C I3X150C 3.00 150 0.56 0.024 0.014 62.5 0.10 132.1 21.5 70.6 16/18 18 C 1/2' I3X150C J4X30C16 4.00 30 0.11 0.095 0.004 21.1 0.18 67.5 21.5 15.0 16 16 C 1/2' J4X30C16 J4X36C16 4.00 36 0.13 0.080 0.004 25.0 0.54 66.0 6.5 28.5 16 16 C 1/2' J4X36C16 I4X52C 4.00 52 0.13 0.077 0.004 26.0 0.28 90.3 6.5 43.8 16 16/18 C 1/2' I4X52C I4X60C 4.00 60 0.15 0.066 0.005 30.3 0.10 81.0 6.5 34.5 16 16/18 C 1/2' I4X60C I4X64C 4.00 64 0.16 0.062 0.005 32.3 0.08 108.5 6.5 62.0 16 16/18 C 1/2' I4X64C I4X68C 4.00 68 0.17 0.058 0.006 34.5 0.04 90.3 6.5 43.8 16 16/18 C 1/2' I4X68C I4X78C 4.00 78 0.14 0.070 0.005 28.6 0.44 172.1 34.0 98.1 16 18 C 2/3' I4X78C I4X80C 4.00 80 0.20 0.050 0.007 40.0 0.28 123.5 21.5 62.0 16/18 16/18 C 2/3' I4X80C I4X100C 4.00 100 0.25 0.040 0.008 50.0 0.10 117.8 34.0 43.8 16 16/18 C 1/2' I4X100C I4X110C 4.00 110 0.30 0.033 0.010 60.6 0.04 123.5 21.5 62.0 16/18 16/18 C 1/2' I4X110C I4X120C 4.00 120 0.27 0.037 0.009 54.1 0.10 136.0 34.0 62.0 16 16/18 C 1/2' I4X120C I4X150C 4.00 150 0.31 0.032 0.010 62.5 0.26 168.2 21.5 106.7 16/18 18 C 1" I4X150C I5X20C 5.00 20 0.08 0.100 0.003 25.0 0.06 105.3 21.5 43.8 16/18 16/18 C 1/2' I5X20C I5X35C 5.00 35 0.09 0.090 0.004 27.8 0.01 172.1 34.0 98.1 16 18 C 1/2' I5X35C I5X36C 5.00 36 0.08 0.100 0.003 25.0 0.24 117.8 34.0 43.8 16 16/18 C 1/2' I5X36C I5X50C 5.00 51 0.10 0.077 0.004 32.5 0.13 105.3 21.5 43.8 16/18 16/18 C 1/2' I5X50C I5X68C 5.00 68 0.14 0.058 0.006 43.1 0.03 105.3 21.5 43.8 16/18 16/18 C 1/2' I5X68C I5X75C 5.00 75 0.15 0.053 0.006 47.2 0.15 168.2 21.5 106.7 16/18 18 C 1/2' I5X75C I5X100C 5.00 100 0.18 0.045 0.007 55.6 0.03 136.0 34.0 62.0 16 16/18 C 1/2' I5X100C I5X110C 5.00 110 0.16 0.050 0.007 50.0 0.10 123.5 21.5 62.0 16/18 16/18 C 1/2' I5X110C I5.3X65C 5.30 65 0.14 0.053 0.006 50.0 0.15 108.5 6.5 62.0 16 16/18 C 1/2' I5.3X65C I6X20C 6.00 20 0.06 0.110 0.003 27.3 0.06 123.5 21.5 62.0 16/18 16/18 C 1/2' I6X20C I6X35C 6.00 35 0.07 0.096 0.003 31.3 0.16 123.5 21.5 62.0 16/18 16/18 C 1/2' I6X35C I6X65C 6.00 65 0.11 0.060 0.006 50.0 0.20 90.3 6.5 43.8 16 16/18 C 1/2' I6X65C I7.5X56C 7.50 56 0.08 0.065 0.005 57.7 0.02 117.8 34.0 43.8 16 16/18 C 1/2' I7.5X56C I7.5X60C 7.50 60 0.08 0.065 0.005 57.7 0.02 123.5 21.5 62.0 16/18 16/18 C 1/2' I7.5X60C I8X20C 8.00 20 0.05 0.110 0.003 36.4 0.20 123.5 21.5 62.0 16/18 16/18 C 1/2' I8X20C I8X36C 8.00 36 0.05 0.110 0.003 36.4 0.20 172.1 34.0 98.1 16 18 C 1/2' I8X36C I8X45C 8.00 45 0.06 0.090 0.004 44.4 0.02 113.6 39.1 34.5 17 16/18 C 1/2' I8X45C 型号 倍数 工作距 景深 数值孔径 分辨率 孔径F# 畸变% 镜身L0 L1 L2 d1 d2 接口 最大接收器 外形图下载
