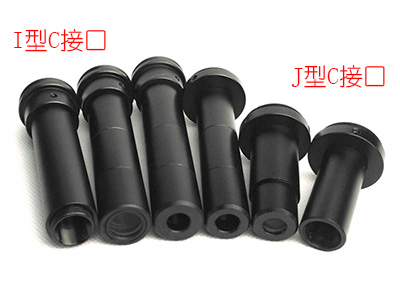

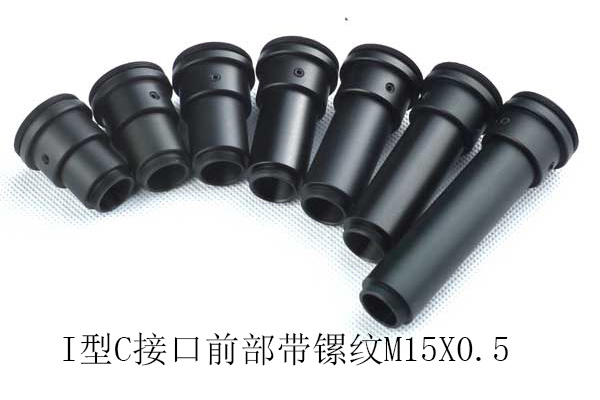

定倍镜头,同轴光镜头 同轴光定倍镜头可以有非同轴光的规格，但非同轴光的不一定能做成同轴光的方式。 同轴光镜头 非同轴光镜头 同轴光镜头26 其它类镜头 非同轴光镜头，定倍镜头，适用相机1/4'至2/3' 1.标准C接口,适用相机芯片尺寸:2/3',1/1.8',1/2',1/3',1/4',1/6',最大支持芯片尺寸祥见下表; 2.镜头外径16~20，安装外径16或18mm（祥见表格中部直径）; 3.非同轴光照明,请使用透射照明，或环形光照明等; 4.表中所列数据仅供参考，实际生产时可能会有所调整; 5.可以按用户要求定制各种倍率及工作距的镜头。 产品列表说明： 产品按放大率从小到大排列，相同放大率按工作距从小到大排列。 外形图在最后一列，图中WD表示工作距。型号中I表示I型接口，J表标示焦中的J型接口，接着是放大率，X后面是工作距， N表示普通型，NM表示前部带15X0.5的镙纹，最后面加数字表示外径. 型号 倍数 工作距 景深 数值孔径 分辨率 孔径F# 畸变% 镜身L0 L1 L2 d1 d2 接口 最大接收器 外形图下载 外形图下载 I0.05X360N18 0.05 360 205.13 0.004 0.086 6.4 1.60 29.8 3.5 12.3 M15X0.5 18 C 1/2' I0.05X360N18 I0.05X485NM18 0.05 485 205.13 0.004 0.086 6.4 1.30 29.8 3.5 12.3 M15X0.5 18 C 1/2' I0.05X485NM18 I0.08X350N16 0.08 350 125.00 0.004 0.084 10.0 0.53 40.5 26.5 0.0 16 16 C 1/2' I0.08X350N16 I0.1X280N16 0.10 280 80.00 0.005 0.067 10.0 0.52 40.5 26.5 0.0 16 16 C 1/2' I0.1X280N16 I0.1X600NM 0.10 600 80.00 0.005 0.067 10.0 0.03 52.0 3.5 34.5 M15X0.5 18/16 C 1/2' I0.1X600NM J0.1X145N22 0.10 145 41.67 0.010 0.035 5.2 1.60 16.3 11.3 0.0 22 22 C 1/2' J0.1X145N22 J0.1X150N16 0.10 150 71.43 0.006 0.060 8.9 1.20 43.3 38.3 0.0 16 16 C 1/2.5' J0.1X150N16 J0.1X185N16 0.10 185 51.95 0.008 0.044 6.5 1.64 26.1 3.5 17.6 M15X0.5 16 C 1/2' J0.1X185N16 J0.1X200N28 0.10 200 36.36 0.011 0.031 4.5 0.30 40.0 40.0 0.0 28 0 C 3/4' J0.1X200N28 J0.1X310N16 0.10 310 12.12 0.033 0.010 1.5 0.36 26.1 3.5 17.6 M15X0.5 16 C 1/2' J0.1X310N16 I0.15X130NM18 0.15 130 33.33 0.008 0.042 9.4 0.15 29.8 3.5 12.3 M15X0.5 18 C 1/2' I0.15X130NM18 I0.15X150NM18 0.15 150 36.53 0.007 0.046 10.3 0.20 29.8 3.5 12.3 M15X0.5 18 C 1/2' I0.15X150NM18 J0.15X85NM22 0.15 85 19.05 0.014 0.024 5.4 0.90 26.2 4.0 17.2 M20X0.75 22 C 1/2.5' J0.15X85NM22 J0.15X85NM22 0.15 85 29.63 0.009 0.037 8.3 0.90 26.2 4.0 17.2 M20X0.75 22 C 1/2.5' J0.15X85NM22 I0.17X108NM 0.17 108 21.39 0.011 0.031 7.7 0.55 52.0 3.5 34.5 M15X0.5 18/16 C 1/3' I0.17X108NM J0.17X108N22 0.17 108 11.76 0.020 0.017 4.3 0.17 35.0 30.0 0.0 22 22 C 1/2' J0.17X108N22 J0.17X108N22 0.17 108 11.76 0.020 0.017 4.3 0.17 35.0 30.0 0.0 22 22 C 1/2' J0.17X108N22 J0.17X110N16 0.17 111 21.39 0.011 0.031 7.7 0.56 49.0 44.0 0.0 16 16 C 1/3' J0.17X110N16 J0.17X80N16 0.17 81 16.81 0.014 0.024 6.1 0.93 43.3 38.3 0.0 16 16 C 1/3' J0.17X80N16 J0.18X110NM22 0.18 110 13.07 0.017 0.020 5.3 1.17 26.1 3.5 17.6 M15X0.5 22 C 1/1.8' J0.18X110NM22 I0.2X100N16 0.20 100 15.38 0.013 0.026 7.7 1.10 40.5 26.5 0.0 16 16 C 1/2' I0.2X100N16 I0.2X110NM18 0.20 110 22.22 0.009 0.037 11.1 0.03 37.0 3.5 19.5 M15X0.5 18 C 1/2' I0.2X110NM18 I0.2X120N16 0.20 120 18.18 0.011 0.031 9.1 0.86 40.5 26.5 0.0 16 16 C 1/2' I0.2X120N16 I0.2X140N16 0.20 140 20.00 0.010 0.034 10.0 0.46 40.5 26.5 0.0 16 16 C 1/2' I0.2X140N16 I0.2X150N 0.20 150 11.76 0.017 0.020 5.9 0.65 56.5 14.5 28.0 16 18/16 C 1/2' I0.2X150N I0.2X160N16 0.20 160 20.00 0.010 0.034 10.0 0.37 40.5 26.5 0.0 16 16 C 1/2' I0.2X160N16 I0.2X160NM 0.20 161 11.76 0.017 0.020 5.9 0.65 45.5 3.5 28.0 M15X0.5 18/16 C 1/2' I0.2X160NM I0.2X165N16 0.20 165 11.76 0.017 0.020 5.9 0.38 40.5 26.5 0.0 16 16 C 1/2.5' I0.2X165N16 I0.2X220N16 0.20 220 22.22 0.009 0.037 11.1 0.48 40.5 26.5 0.0 16 16 C 1/2' I0.2X220N16 I0.2X300N22 0.20 300 14.29 0.014 0.024 7.1 0.18 78.0 26.0 47.0 22 22 C 1/2' I0.2X300N22 I0.2X300N22 0.20 300 20.00 0.010 0.034 10.0 0.30 78.0 26.0 47.0 22 22 C 3/4' I0.2X300N22 I0.2X500NM 0.20 528 28.57 0.007 0.048 14.3 0.27 52.0 3.5 34.5 M15X0.5 18/16 C 1/2' I0.2X500NM I0.2X95NM 0.20 95 15.38 0.013 0.026 7.7 0.30 45.5 3.5 28.0 M15X0.5 18/16 C 1/2' I0.2X95NM J0.2X212NM22 0.20 212 12.50 0.016 0.021 6.3 0.10 46.5 4.0 42.5 M20X0.75 22 C 2/3' J0.2X212NM22 型号 倍数 工作距 景深 数值孔径 分辨率 孔径F# 畸变% 镜身L0 L1 L2 d1 d2 接口 最大接收器 外形图下载 J0.2X300N22 0.20 300 14.29 0.014 0.024 7.1 0.18 77.5 35.0 37.5 22 22 C 1/2' J0.2X300N22 J0.2X520N16 0.20 520 20.62 0.010 0.035 10.3 0.43 77.0 26.0 28.5 16 16 C 1/2" J0.2X520N16 J0.2X65NM22 0.20 65 11.11 0.018 0.019 5.6 0.90 60.0 4.0 51.0 M20X0.75 22 C 1/2' J0.2X65NM22 I0.2X80NM 0.21 80 21.16 0.009 0.037 11.7 0.50 61.3 3.5 43.8 M15X0.5 18/16 C 1/3' I0.2X80NM I0.22X275N22 0.22 275 12.12 0.015 0.022 7.3 0.20 78.0 26.0 47.0 22 22 C 1/2' I0.22X275N22 I0.22X275N22 0.22 275 16.53 0.011 0.031 10.0 0.30 77.5 35.0 37.5 22 22 C 3/4' I0.22X275N22 I0.25X115N16 0.25 115 14.55 0.011 0.031 11.4 0.44 40.5 26.5 0.0 16 16 C 1/2' I0.25X115N16 I0.25X135N16 0.25 138 8.00 0.020 0.017 6.3 0.37 40.5 26.5 0.0 16 16 C 1/2.5' I0.25X135N16 I0.25X150NM 0.25 150 0.05 0.015 0.022 8.3 0.03 79.5 3.5 62.0 M15X0.5 18/16 C 1/2' I0.25X150NM I0.25X550N18 0.25 550 21.33 0.008 0.045 16.7 0.24 66.0 6.5 45.5 16 18 C 1/2' I0.25X550N18 I0.25X73NM 0.25 73 10.67 0.015 0.022 8.3 0.05 52.0 3.5 34.5 M15X0.5 18/16 C 1/2' I0.25X73NM J0.25X101NM22 0.25 101 5.71 0.028 0.012 4.5 0.18 51.5 4.0 42.5 M20X0.75 22 C 2/3' J0.25X185NM22 0.25 185 8.42 0.019 0.018 6.6 0.03 37.5 4.0 28.5 M20X0.75 22 C 1/1.7' J0.25X185NM22 J0.25X275NM22 0.25 275 11.03 0.015 0.023 8.6 0.02 68.5 4.0 59.5 M20X0.75 22 C 1" J0.25X275NM22 I0.26X105N16 0.26 105 12.82 0.012 0.028 10.8 0.14 40.5 26.5 0.0 16 16 C 1/2' I0.26X105N16 I0.26X64NM 0.26 64 9.05 0.017 0.020 7.6 0.60 45.5 3.5 28.0 M15X0.5 18/16 C 1/2.5' I0.26X64NM I0.26X64NM18 0.26 64 9.62 0.016 0.021 8.1 0.90 37.0 3.5 19.5 M15X0.5 18 C 1/2' I0.26X64NM18 J0.26X140NM22 0.26 140 7.69 0.020 0.017 6.5 0.03 72.4 4.0 63.5 M20X0.75 22 C 2/3' J0.26X140NM22 J0.27X75NM22 0.27 73 7.80 0.019 0.018 7.1 1.80 26.2 4.0 17.2 M20X0.75 22 C 1/1.8' J0.27X75NM22 J0.27X75NM22 0.27 73 7.80 0.019 0.018 7.1 1.80 26.2 4.0 17.2 M20X0.75 22 C 1/1.8' J0.27X75NM22 I0.3X450NM 0.28 450 15.87 0.009 0.037 15.6 0.25 79.5 3.5 62.0 M15X0.5 18/16 C 1/2' I0.3X450NM I0.3X100N 0.30 100 9.52 0.014 0.024 10.7 0.40 56.5 14.5 28.0 16 18/16 C 1/2' I0.3X100N I0.3X100N 0.30 102 5.80 0.023 0.015 6.5 0.52 56.5 14.5 28.0 16 18/16 C 1/2' I0.3X100N I0.3X110NM 0.30 110 5.80 0.023 0.015 6.5 0.52 45.5 3.5 28.0 M15X0.5 18/16 C 1/2' I0.3X110NM I0.3X110NM 0.30 110 7.02 0.019 0.018 7.9 0.50 45.5 3.5 28.0 M15X0.5 18/16 C 1/2' I0.3X110NM I0.3X110NM 0.30 110 11.11 0.012 0.028 12.5 0.50 45.5 3.5 28.0 M15X0.5 18/16 C 1/2' I0.3X110NM I0.3X120N16 0.30 118 5.80 0.023 0.015 6.5 0.30 40.5 26.5 0.0 16 16 C 1/2.5' I0.3X120N16 I0.3X120N16 0.30 118 11.11 0.012 0.028 12.5 0.30 40.5 26.5 0.0 16 16 C 1/2' I0.3X120N16 I0.3X130NM 0.30 130 9.52 0.014 0.024 10.7 0.15 61.3 3.5 43.8 M15X0.5 18/16 C 1/3' I0.3X130NM I0.3X180N16 0.30 180 10.26 0.013 0.026 11.5 0.90 40.5 26.5 0.0 16 16 C 1/2' I0.3X180N16 I0.3X187N 0.30 187 7.02 0.019 0.018 7.9 0.12 56.5 14.5 28.0 16 18/16 C 1/2' I0.3X187N I0.3X190N 0.30 197 6.67 0.020 0.017 7.5 0.20 56.5 14.5 28.0 16 18/16 C 2/3' I0.3X190N I0.3X197NM 0.30 197 7.02 0.019 0.018 7.9 0.12 45.5 3.5 28.0 M15X0.5 18/16 C 1/2' I0.3X197NM I0.3X200N 0.30 200 9.52 0.014 0.024 10.7 0.13 56.5 14.5 28.0 16 18/16 C 1/2' I0.3X200N I0.3X210NM 0.30 210 4.94 0.027 0.012 5.6 0.15 79.5 3.5 62.0 M15X0.5 18/16 C 2/3' I0.3X210NM 型号 倍数 工作距 景深 数值孔径 分辨率 孔径F# 畸变% 镜身L0 L1 L2 d1 d2 接口 最大接收器 外形图下载 I0.3X230NM 0.30 230 11.11 0.012 0.028 12.5 0.15 61.3 3.5 43.8 M15X0.5 18/16 C 2/3' I0.3X230NM I0.3X270N16 0.30 270 11.11 0.012 0.028 12.5 0.45 40.5 26.5 0.0 16 16 C 1/2' I0.3X270N16 I0.3X300NM 0.30 300 10.26 0.013 0.026 11.5 0.20 61.3 3.5 43.8 M15X0.5 18/16 C 1/2' I0.3X300NM I0.3X420N 0.30 420 13.33 0.010 0.034 15.0 0.30 63.0 14.5 34.5 16 18/16 C 1/2' I0.3X420N I0.3X500N 0.30 500 16.67 0.008 0.042 18.8 0.30 74.5 6.5 54.0 16 18/16 C 1/2' I0.3X500N I0.3X550N18 0.30 550 14.81 0.009 0.037 16.7 0.23 76.5 21.5 41.0 18 18 C 1/2' I0.3X550N18 I0.3X580N18 0.30 580 14.81 0.009 0.037 16.7 0.21 81.0 21.5 45.5 18 18 C 1/2' I0.3X580N18 I0.3X650N 0.30 650 19.05 0.007 0.048 21.4 0.01 89.5 21.5 54.0 18/16 18/16 C 1/2' I0.3X650N I0.3X65N16 0.30 65 6.67 0.020 0.017 7.5 0.01 40.5 26.5 0.0 16 16 C 1/2' I0.3X65N16 I0.3X68NM 0.30 68 9.52 0.014 0.024 10.7 0.05 79.5 3.5 62.0 M15X0.5 18/16 C 1/2' I0.3X68NM I0.3X68NM 0.30 68 9.52 0.014 0.024 10.7 0.05 79.5 3.5 62.0 M15X0.5 18/16 C 1/2' I0.3X68NM I0.3X68NM 0.30 68 14.49 0.009 0.036 16.3 0.05 79.5 3.5 62.0 M15X0.5 18/16 C 1/2' I0.3X68NM I0.3X70N18 0.30 70 8.33 0.016 0.021 9.4 0.11 85.5 26.0 45.5 18 18 C 1/3' I0.3X70N18 I0.3X70NM 0.30 70 8.33 0.016 0.021 9.4 0.50 52.0 3.5 34.5 M15X0.5 18/16 C 1/2' I0.3X70NM I0.3X98N16 0.30 98 10.26 0.013 0.026 11.5 0.41 40.5 26.5 0.0 16 16 C 1/2' I0.3X98N16 J0.3X110N16 0.30 108 6.67 0.020 0.017 7.5 0.40 43.3 38.3 0.0 16 16 C 1/2' J0.3X110N16 J0.3X128NM22 0.30 128 9.52 0.014 0.024 10.7 0.15 36.5 4.0 54.5 M20X0.75 22 C 1/3' J0.3X128NM22 J0.3X152NM22 0.30 152 7.02 0.019 0.018 7.9 0.02 46.5 4.0 37.5 M20X0.75 22 C 2/3' J0.3X152NM22 J0.3X280N16 0.30 280 9.80 0.014 0.025 11.0 0.15 70.5 21.5 44.0 16 16 C 1/2" J0.3X280N16 J0.3X500N16 0.30 500 13.33 0.010 0.034 15.0 0.10 70.5 21.5 44.0 16 16 C 1/2' J0.3X500N16 J0.3X66NM22 0.30 66 6.67 0.020 0.017 7.5 1.00 26.2 4.0 17.2 M20X0.75 22 C 1/2.5' J0.3X66NM22 J0.3X160N16 0.32 160 6.25 0.020 0.017 8.0 0.18 82.5 33.5 44.0 16 16 C 1/2' J0.3X160N16 I0.35X93NM 0.35 93 5.71 0.020 0.017 8.8 0.33 52.0 3.5 34.5 M15X0.5 18/16 C 1/2' I0.35X93NM I0.3X60N16 0.35 60 7.62 0.015 0.022 11.7 0.27 40.5 26.5 0.0 16 16 C 1/2' I0.3X60N16 J0.35X115NM22 0.35 115 4.57 0.025 0.013 7.0 0.08 68.5 35.0 28.5 22 22 C 1' J0.35X115NM22 J0.35X130N22 0.35 130 4.57 0.025 0.013 7.0 0.02 51.3 35.0 11.3 22 22 C 1/1.8' J0.35X95N22 0.35 95 4.57 0.025 0.013 7.0 0.35 87.0 35.0 47.0 22 22 C 2/3' J0.35X95N22 J0.35X96N16 0.35 96 4.57 0.025 0.013 7.0 0.35 49.0 44.0 0.0 16 16 C 1/3' J0.35X96N16 J0.37X158N16 0.37 158 7.72 0.014 0.024 13.2 0.93 43.3 38.3 0.0 16 16 C 1/2' J0.37X158N16 J0.37X92N16 0.37 92 5.41 0.020 0.017 9.3 0.40 49.0 44.0 0.0 16 16 C 1/2' J0.37X92N16 I0.38X180N28_Y20 0.38 180 4.78 0.022 0.015 8.6 0.03 90.0 40.0 50.0 28 28 C 1.2' I0.38X180N28_Y20 I0.4X109N 0.40 109 4.76 0.021 0.016 9.5 0.10 81.0 6.5 60.5 16 18/16 C 1/2' I0.4X109N I0.4X109N 0.40 109 4.76 0.021 0.016 9.5 0.10 81.0 6.5 60.5 16 18/16 C 1/2' I0.4X109N I0.4X110N18 0.40 110 7.14 0.014 0.024 14.3 0.40 102.1 6.5 81.6 16 18 C 2/3' I0.4X110N18 I0.4X140N 0.40 140 5.88 0.017 0.020 11.8 0.18 74.5 26.0 34.5 18/16 18/16 C 1/2' I0.4X140N 型号 倍数 工作距 景深 数值孔径 分辨率 孔径F# 畸变% 镜身L0 L1 L2 d1 d2 接口 最大接收器 外形图下载 I0.4X163NM 0.40 163 5.88 0.017 0.020 11.8 0.41 52.0 3.5 34.5 M15X0.5 18/16 C 1/2.5' I0.4X163NM I0.4X185N16 0.40 185 4.76 0.021 0.016 9.5 0.31 40.5 26.5 0.0 16 16 C 1/2' I0.4X185N16 I0.4X300N18 0.40 300 7.69 0.013 0.026 15.4 0.40 59.8 21.5 24.3 18 18 C 1/2' I0.4X300N18 I0.4X400N18 0.40 400 6.25 0.016 0.021 12.5 0.20 75.5 1.1 60.4 17 18 C 1/2' I0.4X400N18 I0.4X40N 0.40 40 5.56 0.018 0.019 11.1 0.10 83.8 26.0 43.8 18/16 18/16 C 1/2' I0.4X40N I0.4X50N 0.40 50 5.88 0.017 0.020 11.8 0.13 83.8 26.0 43.8 18/16 18/16 C 1/2' I0.4X50N I0.4X68N 0.40 68 5.00 0.020 0.017 10.0 0.15 68.0 26.0 28.0 18/16 18/16 C 1/2' I0.4X68N I0.4X78N16 0.40 78 5.88 0.017 0.020 11.8 0.37 40.5 26.5 0.0 16 16 C 1/2' I0.4X78N16 I0.4X80N 0.40 79 3.57 0.028 0.012 7.1 0.43 56.5 14.5 28.0 16 18/16 C 1/2' I0.4X80N I0.4X80N 0.40 79 5.00 0.020 0.017 10.0 0.43 56.5 14.5 28.0 16 18/16 C 1/2' I0.4X80N I0.4X90NM 0.40 90 3.57 0.028 0.012 7.1 0.43 45.5 3.5 28.0 M15X0.5 18/16 C 1/2' I0.4X90NM I0.4X95N16 0.40 95 3.57 0.028 0.012 7.1 0.25 40.5 26.5 0.0 16 16 C 1/2.5' I0.4X95N16 I0.4X95N16 0.40 95 4.55 0.022 0.015 9.1 0.40 40.5 26.5 0.0 16 16 C 1/2' I0.4X95N16 J0.4X125NM22 0.40 124 3.70 0.027 0.012 7.4 0.07 46.5 4.0 37.5 M20X0.75 22 C 2/3' J0.4X125NM22 J0.4X160N16 0.40 160 5.88 0.017 0.020 11.8 0.41 55.5 6.5 44.0 16 16 C 1/2.5' J0.4X160N16 J0.4X300N22 0.40 300 9.09 0.011 0.031 18.2 0.85 77.5 35.0 37.5 22 22 C 1" J0.4X300N22 J0.4X65N16 0.40 65 5.00 0.020 0.017 10.0 0.28 70.5 21.5 44.0 16 16 C 1/2" J0.4X65N16 J0.4X65N16 0.40 65 5.00 0.020 0.017 10.0 0.28 70.5 21.5 44.0 16 16 C 1/2" J0.4X65N16 I0.42X660N 0.42 660 11.90 0.008 0.042 26.3 0.40 89.5 21.5 54.0 18/16 18/16 C 1/2' I0.42X660N I0.44X170N28_y20 0.44 170 3.64 0.025 0.013 8.8 0.03 80.0 30.0 50.0 28 28 C 1.2' I0.44X170N28_y20 I0.45X110N16 0.45 110 4.44 0.020 0.017 11.3 0.47 40.5 26.5 0.0 16 16 C 1/2' I0.45X110N16 I0.47X430N 0.47 430 8.51 0.010 0.034 23.5 0.08 74.5 26.0 34.5 18/16 18/16 C 1/2' I0.47X430N I0.48X308N 0.48 308 6.25 0.013 0.025 18.0 0.08 69.1 27.1 28.0 18/16 18/16 C 1/2' I0.48X308N I0.5X85N16 0.48 85 4.63 0.018 0.019 13.3 0.53 40.5 26.5 0.0 16 16 C 1/2' I0.5X85N16 I0.5X100N 0.50 100 3.48 0.023 0.015 10.9 0.17 56.5 14.5 28.0 16 18/16 C 1/2' I0.5X100N I0.5X110N 0.50 110 2.86 0.028 0.012 8.9 0.10 83.8 26.0 43.8 18/16 18/16 C 1/2' I0.5X110N I0.5X110N 0.50 110 4.00 0.020 0.017 12.5 0.10 83.8 26.0 43.8 18/16 18/16 C 1/2' I0.5X110N I0.5X110N18 0.50 110 5.00 0.016 0.021 15.6 0.37 84.1 14.5 55.6 16 18 C 2/3' I0.5X110N18 I0.5X110N22 0.50 110 3.20 0.025 0.013 10.0 0.14 82.5 35.0 42.5 22 22 C 1/2' I0.5X110N22 I0.5X113NM 0.50 113 3.48 0.023 0.015 10.9 0.37 79.5 3.5 62.0 M15X0.5 18/16 C 1/2' I0.5X113NM I0.5X120N16 0.50 120 3.33 0.024 0.014 10.4 0.60 40.5 26.5 0.0 16 16 C 1/2' I0.5X120N16 I0.5X120N16 0.50 120 5.71 0.014 0.024 17.9 0.60 40.5 26.5 0.0 16 16 C 1/2' I0.5X120N16 I0.5X125NM22 0.50 125 4.00 0.020 0.017 12.5 0.65 72.5 4.0 63.5 M20X0.75 22 C 2/3' I0.5X125NM22 I0.5X132NM 0.50 132 2.67 0.030 0.011 8.3 0.01 61.3 3.5 43.8 M15X0.5 18/16 C 1/2' I0.5X132NM I0.5X133N18 0.50 133 2.67 0.030 0.011 8.3 0.01 59.5 26.0 19.5 18 18 C 1/2' I0.5X133N18 型号 倍数 工作距 景深 数值孔径 分辨率 孔径F# 畸变% 镜身L0 L1 L2 d1 d2 接口 最大接收器 外形图下载 I0.5X135N 0.50 135 4.00 0.020 0.017 12.5 0.20 56.5 14.5 28.0 16 18/16 C 1/2' I0.5X135N I0.5X137NM 0.50 137 2.67 0.030 0.011 8.3 0.02 61.3 3.5 43.8 M15X0.5 18/16 C 1/2' I0.5X137NM I0.5X150NM 0.50 150 6.67 0.012 0.028 20.8 0.31 52.0 3.5 34.5 M15X0.5 18/16 C 1/2' I0.5X150NM I0.5X155N18 0.50 156 6.67 0.012 0.028 20.8 0.34 48.0 14.5 19.5 16 18 C 1/2' I0.5X155N18 I0.5X160NM 0.50 160 3.20 0.025 0.013 10.0 0.00 79.5 3.5 62.0 M15X0.5 18/16 C 1/2' I0.5X160NM I0.5X175N18 0.50 175 3.20 0.025 0.013 10.0 0.01 86.3 34.0 38.3 16 18 C 1/2' I0.5X175N18 I0.5X185N 0.50 185 3.20 0.025 0.013 10.0 0.20 56.5 14.5 28.0 16 18/16 C 1/2' I0.5X185N I0.5X185NM 0.50 180 3.64 0.022 0.015 11.4 0.35 45.5 3.5 28.0 M15X0.5 18/16 C 1/2' I0.5X185NM I0.5X200N 0.50 200 5.33 0.015 0.022 16.7 0.30 56.5 14.5 28.0 16 18/16 C 1/2' I0.5X200N I0.5X205N18 0.50 205 4.21 0.019 0.018 13.2 0.40 59.8 21.5 24.3 18 18 C 1/3' I0.5X205N18 I0.5X205NM 0.50 205 4.21 0.019 0.018 13.2 0.28 61.3 3.5 43.8 M15X0.5 18/16 C 1/2' I0.5X205NM I0.5X260NM 0.50 260 5.33 0.015 0.022 16.7 0.40 61.3 3.5 43.8 M15X0.5 18/16 C 2/3' I0.5X260NM I0.5X300N 0.50 297 6.00 0.013 0.025 18.8 0.08 69.1 27.1 28.0 18/16 18/16 C 1/2' I0.5X300N I0.5X320N 0.50 320 6.00 0.013 0.025 18.8 0.08 74.5 6.5 54.0 16 18/16 C 1/2' I0.5X320N I0.5X350N16 0.50 350 7.27 0.011 0.031 22.7 0.10 74.5 6.5 54.0 16 16 C 1/2' I0.5X350N I0.5X350N18 0.50 350 7.27 0.011 0.031 22.7 0.08 74.5 26.0 34.5 18 18 C 1/2' I0.5X350N I0.5X400N 0.50 400 8.00 0.010 0.034 25.0 0.08 74.5 26.0 34.5 18/16 18/16 C 1/2' I0.5X400N I0.5X400NM 0.50 400 8.00 0.010 0.034 25.0 0.09 79.5 3.5 62.0 M15X0.5 18/16 C 1/2' I0.5X400NM I0.5X40N 0.50 40 4.21 0.019 0.018 13.2 0.12 83.8 26.0 43.8 18/16 18/16 C 1/2' I0.5X40N I0.5X40N16 0.50 40 2.67 0.030 0.011 8.3 0.12 40.5 26.5 0.0 16 16 C 1/2.5' I0.5X40N16 I0.5X48N16 0.50 48 2.86 0.028 0.012 8.9 0.12 40.5 26.5 0.0 16 16 C 1/2' I0.5X48N16 I0.5X500N20 0.50 500 4.44 0.018 0.019 13.9 0.20 111.0 36.5 60.5 20 18/16 C 1/2' I0.5X500N20 I0.5X50N 0.50 50 2.50 0.032 0.010 7.8 0.36 74.5 26.0 34.5 18/16 18/16 C 1/2' I0.5X50N I0.5X50N 0.50 50 4.21 0.019 0.018 13.2 0.36 74.5 26.0 34.5 18/16 18/16 C 1/2' I0.5X50N I0.5X52N 0.50 52 3.81 0.021 0.016 11.9 0.01 56.5 14.5 28.0 16 18/16 C 1/2.5' I0.5X52N I0.5X560N18 0.50 560 11.43 0.007 0.048 35.7 0.08 117.1 21.5 81.6 18 18 C 1/2' I0.5X560N18 I0.5X60N 0.50 60 3.20 0.025 0.013 10.0 0.01 56.5 14.5 28.0 16 18/16 C 1/2' I0.5X60N I0.5X65NM 0.50 65 2.50 0.032 0.010 7.8 0.36 61.3 3.5 43.8 M15X0.5 18/16 C 1/2' I0.5X65NM I0.5X66N16 0.50 66 4.00 0.020 0.017 12.5 0.34 40.5 26.5 0.0 16 16 C 1/2' I0.5X66N16 I0.5X68N 0.50 68 2.50 0.032 0.010 7.8 0.36 56.5 14.5 28.0 16 18/16 C 1/2' I0.5X68N I0.5X70NM 0.50 70 4.00 0.020 0.017 12.5 0.33 52.0 3.5 34.5 M15X0.5 18/16 C 1/2' I0.5X70NM I0.5X71N18 0.50 71 2.76 0.029 0.012 8.6 0.10 81.0 21.5 45.5 18 18 C 1/2' I0.5X71N18 I0.5X730N18 0.50 730 13.33 0.006 0.056 41.7 0.03 117.1 21.5 81.6 18 18 C 1/2' I0.5X730N18 I0.5X750N20 0.50 750 8.00 0.010 0.034 25.0 0.09 120.4 36.6 69.8 20 18/16 C 1/2' I0.5X750N20 I0.5X78NM 0.50 78 2.50 0.032 0.010 7.8 0.36 45.5 3.5 28.0 M15X0.5 18/16 C 1/2' I0.5X78NM 型号 倍数 工作距 景深 数值孔径 分辨率 孔径F# 畸变% 镜身L0 L1 L2 d1 d2 接口 最大接收器 外形图下载 I0.5X82N16 0.50 82 2.50 0.032 0.010 7.8 0.21 40.5 26.5 0.0 16 16 C 1/2.5' I0.5X82N16 I0.5X95NM18 0.50 95 4.44 0.018 0.019 13.9 0.33 29.8 3.5 12.3 M15X0.5 18 C 1/2' I0.5X95NM18 J0.5X104NM22 0.50 104 2.50 0.032 0.010 7.8 0.07 51.5 4.0 42.5 M20X0.75 22 C 1' J0.5X104NM22 J0.5X126N16 0.50 126 4.21 0.019 0.018 13.2 0.11 70.5 21.5 44.0 16 16 C 1/1.8' J0.5X126N16 J0.5X133NM22 0.50 133 4.21 0.019 0.018 13.2 0.56 63.5 4.0 54.5 M20X0.75 22 C 1/2' J0.5X133NM22 J0.5X155N16 0.50 155 6.67 0.012 0.028 20.8 0.34 49.0 44.0 0.0 16 16 C 1/2' J0.5X155N16 J0.5X180N16 0.50 180 3.64 0.022 0.015 11.4 0.01 82.5 33.5 44.0 16 16 C 1/2' J0.5X180N16 J0.5X200N16 0.50 200 3.48 0.023 0.015 10.9 0.16 70.5 21.5 44.0 16 16 C 1/3' J0.5X200N16 J0.5X250N16 0.50 250 3.48 0.023 0.015 10.9 0.40 60.0 34.0 21.0 16 16 C 1/2' J0.5X250N16 J0.5X300NM22 0.50 300 6.96 0.012 0.029 21.7 0.47 87.0 35.0 47.0 22 22 C 1' J0.5X300NM22 J0.5X40N16 0.50 40 2.58 0.031 0.011 8.1 0.09 37.0 3.5 28.5 M15X0.5 16 C 1/2' J0.5X40N16 J0.5X49N16 0.50 49 3.81 0.021 0.016 11.9 0.10 23.0 18.0 0.0 18/16 18/16 C 1/2.5' J0.5X49N16 J0.5X65N16 0.50 65 2.50 0.032 0.010 7.8 0.10 59.5 26.0 28.5 16 16 C 1/2' J0.5X65N16 J0.5X75N16 0.50 75 2.67 0.030 0.011 8.3 0.18 70.5 21.5 44.0 16 16 C 1/2.3' J0.5X75N16 I0.5X133N 0.52 133 2.56 0.030 0.011 8.7 0.01 56.5 14.5 28.0 16 18/16 C 1/2' I0.5X133N I0.5X180N 0.52 180 3.50 0.022 0.015 11.8 0.20 56.5 14.5 28.0 16 18/16 C 1/2' I0.5X180N J0.52X200N16 0.52 200 2.85 0.027 0.012 9.6 0.14 60.0 34.0 26.0 16 16 C 1/2' J0.52X200N16 I0.54X30.5N 0.54 31 3.70 0.020 0.017 13.5 0.30 89.5 21.5 54.0 18/16 18/16 C 1/2' I0.54X30.5N J0.55X130N16 0.55 131 2.51 0.029 0.012 9.5 0.45 59.5 33.5 21.0 16 16 C 1/2' J0.55X130N16 I0.6X110N16 0.60 110 2.67 0.025 0.013 12.0 0.90 40.5 26.5 0.0 16 16 C 1/2' I0.6X110N16 I0.6X117N 0.60 117 2.56 0.026 0.013 11.5 0.23 68.0 26.0 28.0 18/16 18/16 C 1/2' I0.6X117N I0.6X120NM 0.60 120 3.70 0.018 0.019 16.7 0.10 61.3 3.5 43.8 M15X0.5 18/16 C 1/2' I0.6X120NM I0.6X125NM 0.60 125 2.90 0.023 0.015 13.0 0.50 45.5 3.5 28.0 M15X0.5 18/16 C 1/2' I0.6X125NM I0.6X126NM 0.60 126 3.51 0.019 0.018 15.8 0.48 61.3 3.5 43.8 M15X0.5 18/16 C 1/1.8' I0.6X126NM I0.6X127N28_Y20 0.60 127 2.15 0.031 0.011 9.7 0.03 100.0 50.0 50.0 28 28 C 1.2" I0.6X127N28_Y20 I0.6X140NM 0.60 140 3.70 0.018 0.019 16.7 0.40 45.5 3.5 28.0 M15X0.5 18/16 C 1/2.5' I0.6X140NM I0.6X150N 0.60 150 3.51 0.019 0.018 15.8 0.34 56.5 14.5 28.0 16 18/16 C 1/2' I0.6X150N I0.6X195NM 0.60 195 3.33 0.020 0.017 15.0 0.20 61.3 3.5 43.8 M15X0.5 18/16 C 1/2' I0.6X195NM I0.6X205NM 0.60 205 3.33 0.020 0.017 15.0 0.43 79.5 3.5 62.0 M15X0.5 18/16 C 1/2' I0.6X205NM I0.6X230NM 0.60 230 3.92 0.017 0.020 17.6 0.56 79.5 3.5 62.0 M15X0.5 18/16 C 1/2' I0.6X230NM I0.6X30NM18 0.60 30 2.67 0.025 0.013 12.0 0.20 29.8 3.5 12.3 M15X0.5 18 C 1/2' I0.6X30NM18 I0.6X60N 0.60 59 1.85 0.036 0.009 8.3 0.30 56.5 14.5 28.0 16 18/16 C 1/2' I0.6X60N I0.6X65NM 0.60 65 1.90 0.035 0.010 8.6 0.30 52.0 3.5 34.5 M15X0.5 18/16 C 1/2' I0.6X65NM I0.6X70NM 0.60 70 1.85 0.036 0.009 8.3 0.30 45.5 3.5 28.0 M15X0.5 18/16 C 1/2' I0.6X70NM I0.6X75N16 0.60 75 1.90 0.035 0.010 8.6 0.18 40.5 26.5 0.0 16 16 C 1/2.5' I0.6X75N16 型号 倍数 工作距 景深 数值孔径 分辨率 孔径F# 畸变% 镜身L0 L1 L2 d1 d2 接口 最大接收器 外形图下载 I0.6X86N 0.60 86 1.85 0.036 0.009 8.3 0.01 96.0 21.5 60.5 18/16 18/16 C 1/2' I0.6X86N I0.6X90N 0.60 90 2.08 0.032 0.010 9.4 0.01 96.0 21.5 60.5 18/16 18/16 C 1/2' I0.6X90N I0.6X91N 0.60 91 1.96 0.034 0.010 8.8 0.02 89.5 21.5 54.0 18/16 18/16 C 1/2.5' I0.6X91N J0.6X118N16 0.60 118 2.90 0.023 0.015 13.0 0.92 49.0 44.0 0.0 16 16 C 1/2' J0.6X118N16 J0.6X250NM22 0.60 250 4.76 0.014 0.024 21.4 0.42 63.5 4.0 54.5 M20X0.75 22 C 2/3' J0.6X250NM22 J0.6X65N16 0.60 65 2.67 0.025 0.013 12.0 0.40 83.0 34.0 44.0 16 16 C 1/2' J0.6X65N16 J0.6X67N16 0.60 67 2.47 0.027 0.012 11.1 0.30 49.0 44.0 0.0 16 16 C 1/2.5' J0.6X67N16 J0.6X83NM22 0.60 83 1.80 0.037 0.009 8.1 0.06 63.5 4.0 54.5 M20X0.75 22 C 1' J0.6X83NM22 I0.65X110N16 0.64 110 3.00 0.021 0.016 15.1 0.13 97.1 83.1 0.0 16 0 C 1/2' I0.65X110N16 I0.65X110N22 0.65 110 2.28 0.027 0.012 12.0 0.26 99.5 35.0 59.5 22 22 C 1/1.8' I0.65X110N22 I0.65X70N18 0.65 70 1.76 0.035 0.010 9.3 0.10 81.0 21.5 45.5 18 18 C 1/2' I0.65X70N18 I0.65X92N 0.65 92 2.46 0.025 0.013 13.0 0.65 56.5 14.5 28.0 16 18/16 C 1/2' I0.65X92N I0.65X93N 0.65 93 2.28 0.027 0.012 12.0 0.17 89.5 21.5 54.0 18/16 18/16 C 1/2.5' I0.65X93N I0.66X285NM18 0.66 285 4.66 0.013 0.026 25.4 0.08 88.1 3.5 70.6 M15X0.5 18 C 1/2' I0.66X285NM18 I0.66X400NM18 0.66 400 6.06 0.010 0.034 33.0 0.13 88.1 3.5 70.6 M15X0.5 18 C 2/3' I0.66X400NM18 I0.7X110N18 0.70 109 1.56 0.037 0.009 9.5 0.01 66.0 6.5 45.5 16 18 C 1/2' I0.7X110N18 I0.7X128N18 0.70 128 1.90 0.030 0.011 11.7 0.01 81.0 21.5 45.5 18 18 C 1/2' I0.7X128N18 I0.7X130N28_y20 0.70 130 1.68 0.034 0.010 10.3 0.03 90.0 30.0 60.0 28 28 C 1.2' I0.7X130N28_y20 I0.7X250N18 0.70 251 2.60 0.022 0.015 15.9 0.20 81.0 21.5 45.5 18 18 C 1/2' I0.7X250N18 I0.7X370N 0.70 372 3.81 0.015 0.022 23.3 0.06 89.5 21.5 54.0 18/16 18/16 C 1/2' I0.7X370N I0.7X370N 0.70 372 3.81 0.015 0.022 23.3 0.06 89.5 21.5 54.0 18/16 18/16 C 1/2' I0.7X370N I0.7X410N 0.70 412 4.40 0.013 0.026 26.9 0.05 96.0 21.5 60.5 18/16 18/16 C 1/2' I0.7X410N I0.7X55N 0.70 55 1.43 0.040 0.008 8.8 0.20 56.5 14.5 28.0 16 18/16 C 1/2' I0.7X55N I0.7X60N16 0.70 60 2.29 0.025 0.013 14.0 0.20 40.5 26.5 0.0 16 16 C 1/2' I0.7X60N16 I0.7X60N16 0.70 60 3.46 0.017 0.020 21.2 0.20 40.5 26.5 0.0 16 16 C 1/2' I0.7X60N16 I0.7X66NM 0.70 66 1.47 0.039 0.009 9.0 0.26 45.5 3.5 28.0 M15X0.5 18/16 C 1/2' I0.7X66NM I0.7X68N18 0.70 68 1.90 0.030 0.011 11.7 0.03 48.0 14.5 19.5 16 18 C 1/2' I0.7X68N18 I0.7X71N16 0.70 71 1.50 0.038 0.009 9.2 0.15 40.5 26.5 0.0 16 16 C 1/2.5' I0.7X71N16 I0.7X76N 0.70 76 2.12 0.027 0.012 13.0 0.10 63.0 14.5 34.5 16 18/16 C 1/2' I0.7X76N J0.7X100N16 0.70 108 1.84 0.031 0.011 11.3 0.10 70.5 21.5 44.0 16 16 C 1/3' J0.7X100N16 J0.7X106N16 0.70 106 1.84 0.031 0.011 11.3 0.40 59.5 33.5 21.0 16 16 C 1/2' J0.7X106N16 J0.7X108N16 0.70 108 1.47 0.039 0.009 9.0 0.10 70.5 21.5 44.0 16 16 C 1/2' J0.7X108N16 J0.7X110N28 0.70 110 1.43 0.040 0.008 8.8 0.59 70.0 70.0 0.0 28 28 C 1/1.8' J0.7X110N28 J0.7X65NM22 0.70 65 1.54 0.037 0.009 9.5 0.17 46.5 4.0 37.5 M20X0.75 22 C 1/2' J0.7X65NM22 J0.7X110N16 0.71 110 1.88 0.030 0.011 11.8 0.23 64.8 21.5 38.3 16 16 C 1/2' J0.7X110N16 型号 倍数 工作距 景深 数值孔径 分辨率 孔径F# 畸变% 镜身L0 L1 L2 d1 d2 接口 最大接收器 外形图下载 J0.73X520N26 0.73 520 3.41 0.016 0.021 22.9 0.20 145.0 41.0 104.0 26 22 C 1/2" J0.73X520N26 I0.75X110N16 0.75 110 1.52 0.035 0.010 10.7 0.32 40.5 26.5 0.0 16 16 C 1/2' I0.75X110N16 I0.75X70N16 0.75 70 1.33 0.040 0.008 9.4 0.25 40.5 26.5 0.0 16 16 C 1/2' I0.75X70N16 I0.8X100N 0.80 100 1.29 0.039 0.009 10.3 0.18 74.5 26.0 34.5 18/16 18/16 C 1/2' I0.8X100N I0.8X102N 0.80 103 1.29 0.039 0.009 10.3 0.18 69.1 27.1 28.0 18/16 18/16 C 1/2' I0.8X102N I0.8X105N16 0.80 105 1.14 0.044 0.008 9.1 0.19 70.6 22.1 34.5 16 16 C 1/2' I0.8X105N16 I0.8X110N 0.80 110 2.27 0.022 0.015 18.2 0.40 56.5 14.5 28.0 16 18/16 C 2/3' I0.8X110N I0.8X120NM 0.80 120 1.67 0.030 0.011 13.3 0.40 79.5 3.5 62.0 M15X0.5 18/16 C 1/2' I0.8X120NM I0.8X130NM 0.80 130 2.17 0.023 0.015 17.4 0.27 61.3 3.5 43.8 M15X0.5 18/16 C 1/2' I0.8X130NM I0.8X135N18 0.80 135 1.67 0.030 0.011 13.3 0.20 66.0 6.5 45.5 16 18 C 1/2' I0.8X135N18 I0.8X150N 0.80 150 2.00 0.025 0.013 16.0 0.30 63.0 14.5 34.5 16 18/16 C 1/2' I0.8X150N I0.8X160N 0.80 160 2.00 0.025 0.013 16.0 0.26 74.5 26.0 34.5 18/16 18/16 C 1/2' I0.8X160N I0.8X190N18 0.80 190 1.72 0.029 0.012 13.8 0.10 86.3 34.0 38.3 16 18 C 1/2' I0.8X190N18 I0.8X200N18 0.80 200 2.17 0.023 0.015 17.4 0.60 81.0 21.5 45.5 18 18 C 1/2' I0.8X200N18 I0.8X215N18 0.80 215 2.00 0.025 0.013 16.0 0.07 86.3 34.0 38.3 16 18 C 1/2' I0.8X215N18 I0.8X285NM18 0.80 285 3.57 0.014 0.024 28.6 0.10 81.6 3.5 64.1 M15X0.5 18 C 1/2' I0.8X285NM18 I0.8X300N 0.80 300 3.33 0.015 0.022 26.7 0.07 84.9 27.1 43.8 18/16 18/16 C 1/2' I0.8X300N I0.8X30NM18 0.80 30 1.16 0.043 0.008 9.3 0.02 29.8 3.5 12.3 M15X0.5 18 C 1/2' I0.8X30NM18 I0.8X335N18 0.80 335 3.13 0.016 0.021 25.0 0.06 93.5 34.0 45.5 16 18 C 1/2' I0.8X335N18 I0.8X35N16 0.80 35 1.39 0.036 0.009 11.1 0.11 40.5 26.5 0.0 16 16 C 1/2' I0.8X35N16 I0.8X52N 0.80 52 1.19 0.042 0.008 9.5 0.22 56.5 14.5 28.0 16 18/16 C 1/2' I0.8X52N I0.8X63NM 0.80 63 1.19 0.042 0.008 9.5 0.22 45.5 3.5 28.0 M15X0.5 18/16 C 1/2' I0.8X63NM I0.8X68N16 0.80 68 1.52 0.033 0.010 12.1 0.20 40.5 26.5 0.0 16 16 C 1/2' I0.8X68N16 I0.8X70N 0.80 70 1.52 0.033 0.010 12.1 0.14 105.3 21.5 69.8 18/16 18/16 C 1/2' I0.8X70N I0.8X70N 0.80 70 1.52 0.033 0.010 12.1 0.14 105.3 21.5 69.8 18/16 18/16 C 1/2' I0.8X70N I0.8X85NM 0.80 85 1.32 0.038 0.009 10.5 0.50 61.3 3.5 43.8 M15X0.5 18/16 C 1/2' I0.8X85NM I0.8X85NM 0.80 85 1.72 0.029 0.012 13.8 0.50 61.3 3.5 43.8 M15X0.5 18/16 C 1/2' I0.8X85NM I0.8X90NM 0.80 90 1.67 0.030 0.011 13.3 0.60 45.5 3.5 28.0 M15X0.5 18/16 C 1/2' I0.8X90NM I0.8X92N 0.80 92 1.22 0.041 0.008 9.8 0.02 81.0 6.5 60.5 16 18/16 C 1/2' I0.8X92N I0.8X98N 0.80 98 1.00 0.050 0.007 8.0 0.02 74.5 26.0 34.5 18/16 18/16 C 1/2' I0.8X98N J0.8X110N16 0.80 110 2.08 0.024 0.014 16.7 0.56 71.6 22.6 44.0 16 16 C 2/3' J0.8X110N16 J0.8X30NM18 0.80 32 1.16 0.043 0.008 9.3 0.05 29.5 3.5 21.0 M15X0.5 18 C 1/2.5' J0.8X30NM18 J0.85X80N 0.85 80 1.88 0.025 0.013 17.0 0.54 47.5 21.5 21.0 18/16 18/16 C 1/2.5' J0.85X80N I0.9X105N 0.90 105 1.48 0.030 0.011 15.0 0.25 56.5 14.5 28.0 16 18/16 C 1/2' I0.9X105N I0.9X115N 0.90 115 1.27 0.035 0.010 12.9 0.02 89.5 21.5 54.0 18/16 18/16 C 2/3' I0.9X115N 型号 倍数 工作距 景深 数值孔径 分辨率 孔径F# 畸变% 镜身L0 L1 L2 d1 d2 接口 最大接收器 外形图下载 I0.9X220N 0.90 220 1.78 0.025 0.013 18.0 0.30 89.5 21.5 54.0 18/16 18/16 C 1/2' I0.9X220N I0.9X51N 0.90 51 1.01 0.044 0.008 10.2 0.20 56.5 14.5 28.0 16 18/16 C 1/2' I0.9X51N I0.9X62NM 0.90 62 1.01 0.044 0.008 10.2 0.20 45.5 3.5 28.0 M15X0.5 18/16 C 1/2' I0.9X62NM I1X108N22 1.00 108 0.87 0.046 0.007 10.9 0.08 103.5 35.0 63.5 22 22 C 1" I1X108N22 I1X108N22 1.00 108 1.08 0.037 0.009 13.5 0.08 103.5 35.0 63.5 22 22 C 1" I1X108N22 I1X108N22 1.00 108 1.43 0.028 0.012 17.9 0.08 103.5 35.0 63.5 22 22 C 1" I1X108N22 I1X110N 1.00 110 0.80 0.050 0.007 10.0 0.01 96.0 21.5 60.5 18/16 18/16 C 1/2' I1X110N I1X110N 1.00 110 1.10 0.036 0.009 13.8 0.01 96.0 21.5 60.5 18/16 18/16 C 1/2' I1X110N I1X110N 1.00 110 1.48 0.027 0.012 18.5 0.40 56.5 14.5 28.0 16 18/16 C 1/2' I1X110N I1X146N18 1.00 146 1.00 0.036 0.009 13.9 0.24 86.3 34.0 38.3 16 18 C 1/2' I1X146N18 I1X150N18 1.00 150 1.08 0.037 0.009 13.5 0.24 81.0 21.5 45.5 18 18 C 1/2' I1X150N18 I1X150N18 1.00 150 1.50 0.027 0.013 18.8 0.24 81.0 21.5 45.5 18 18 C 1/2' I1X150N18 I1X155N 1.00 155 1.60 0.025 0.013 20.0 0.20 96.0 21.5 60.5 18/16 18/16 C 1/2' I1X155N I1X168N18 1.00 168 1.00 0.032 0.010 15.6 0.24 86.3 34.0 38.3 16 18 C 1/2' I1X168N18 I1X190N 1.00 190 1.40 0.029 0.012 17.5 0.20 105.3 21.5 69.8 18/16 18/16 C 1/2' I1X190N I1X190NM18 1.00 190 1.90 0.021 0.016 23.8 0.20 88.1 3.5 70.6 M15X0.5 18 C 1/2' I1X190NM18 I1X250N 1.00 250 1.82 0.022 0.015 22.7 0.10 105.3 21.5 69.8 18/16 18/16 C 2/3' I1X250N I1X280N16 1.00 289 2.35 0.017 0.020 29.4 0.01 117.8 34.0 69.8 16 16 C 1/2' I1X280N16 I1X29NM18 1.00 29 1.18 0.034 0.010 14.7 0.01 32.5 3.5 15.0 M15X0.5 18 C 1/2' I1X29NM18 I1X300N 1.00 300 2.22 0.018 0.019 27.8 0.05 96.0 21.5 60.5 18/16 18/16 C 2/3' I1X300N I1X300N18 1.00 300 3.64 0.011 0.031 45.5 0.05 99.1 14.5 70.6 16 18 C 1/2' I1X300N18 I1X45N 1.00 45 0.89 0.045 0.007 11.1 0.33 63.0 14.5 34.5 16 18/16 C 1/2' I1X45N I1X50N18 1.00 48 1.08 0.037 0.009 13.5 0.15 59.5 26.0 19.5 18 18 C 1/2' I1X50N18 I1X51N 1.00 51 0.87 0.046 0.007 10.9 0.17 56.5 14.5 28.0 16 18/16 C 1/2' I1X51N I1X56NM 1.00 56 0.89 0.045 0.007 11.1 0.33 52.0 3.5 34.5 M15X0.5 18/16 C 1/2' I1X56NM I1X59N 1.00 59 1.18 0.034 0.010 14.7 0.33 56.5 14.5 28.0 16 18/16 C 1/2' I1X59N I1X60N18 1.00 61 0.85 0.047 0.007 10.6 0.17 48.0 14.5 19.5 16 18 C 1/2' I1X60N18 I1X60N18 1.00 61 1.08 0.037 0.009 13.5 0.36 48.0 14.5 19.5 16 18 C 1/2' I1X60N18 I1X62NM 1.00 62 0.71 0.056 0.006 8.9 0.02 45.5 3.5 28.0 M15X0.5 18/16 C 1/2' I1X62NM I1X62NM 1.00 62 0.71 0.056 0.006 8.9 0.02 45.5 3.5 28.0 M15X0.5 18/16 C 1/2' I1X62NM I1X64N 1.00 64 1.33 0.030 0.011 16.7 0.03 72.3 14.5 43.8 16 18/16 C 1/2' I1X64N I1X65N 1.00 65 1.29 0.031 0.011 16.1 0.45 56.5 14.5 28.0 16 18/16 C 1/2' I1X65N I1X66NM 1.00 66 1.00 0.040 0.008 12.5 0.48 52.0 3.5 34.5 M15X0.5 18/16 C 1/2' I1X66NM I1X71N18 1.00 71 1.60 0.025 0.013 20.0 0.29 81.0 21.5 45.5 18 18 C 1/2' I1X71N18 I1X77NM 1.00 77 0.93 0.043 0.008 11.6 0.50 45.5 3.5 28.0 M15X0.5 18/16 C 1/2' I1X77NM 型号 倍数 工作距 景深 数值孔径 分辨率 孔径F# 畸变% 镜身L0 L1 L2 d1 d2 接口 最大接收器 外形图下载 I1X82N 1.00 82 1.14 0.035 0.010 14.3 0.30 63.0 14.5 34.5 16 18/16 C 1/2' I1X82N I1X82N 1.00 82 1.54 0.026 0.013 19.2 0.30 63.0 14.5 34.5 16 18/16 C 1/2' I1X82N I1X85NM 1.00 85 1.29 0.031 0.011 16.1 1.10 61.3 3.5 43.8 M15X0.5 18/16 C 2/3' I1X85NM I1X90N 1.00 90 0.80 0.050 0.007 10.0 0.01 81.0 6.5 60.5 16 18/16 C 1/2' I1X90N I1X95NM 1.00 95 1.48 0.027 0.012 18.5 0.91 61.3 3.5 43.8 M15X0.5 18/16 C 2/3' I1X95NM I1X95NM 1.00 95 2.22 0.018 0.019 27.8 0.91 61.3 3.5 43.8 M15X0.5 18/16 C 2/3' I1X95NM I1X98N 1.00 98 1.43 0.028 0.012 17.9 0.19 63.0 14.5 34.5 16 18/16 C 1/2' I1X98N J1X110N16 1.00 110 0.85 0.047 0.007 10.6 0.30 81.0 21.5 54.5 16 16 C 1/2' J1X110N16 J1X110N16 1.00 110 1.60 0.025 0.013 20.0 0.30 81.0 21.5 54.5 16 16 C 1/2' J1X110N16 J1X110N22y24 1.00 110 1.03 0.039 0.009 12.8 0.06 99.5 35.0 59.5 22 22 C 1/1.1' J1X110N22y24 J1X135N16 1.00 135 1.33 0.030 0.011 16.7 0.45 70.5 21.5 44.0 16 16 C 1/2' J1X135N16 J1X135NM22 1.00 135 1.33 0.030 0.011 16.7 0.48 68.5 4.0 59.5 M20X0.75 22 C 1/2' J1X135NM22 J1X168N16 1.00 168 1.74 0.023 0.015 21.7 0.16 82.5 33.5 44.0 16 16 C 1/1.8' J1X168N16 J1X29NM18 1.00 29 1.18 0.034 0.010 14.7 0.01 32.5 3.5 24.0 M15X0.5 18 C 1/2' J1X29NM18 J1X506N26 1.00 506 2.50 0.016 0.021 31.3 0.10 145.0 41.0 99.0 26 22 C 2/3' J1X506N26 J1X60N16 1.00 60 1.08 0.037 0.009 13.5 0.16 49.0 44.0 0.0 16 16 C 1/2' J1X60N16 J1X64N22 1.00 64 0.95 0.042 0.008 11.9 0.02 108.5 35.0 68.5 22 22 C 2/3' J1X64N22 J1X69N16 1.00 69 1.60 0.025 0.013 20.0 0.32 76.8 33.5 38.3 16 16 C 1/2' J1X69N16 I1.2X100N 1.20 100 0.71 0.047 0.007 12.8 0.18 105.3 21.5 69.8 18/16 18/16 C 1/2' I1.2X100N I1.2X100N 1.20 100 0.85 0.039 0.009 15.4 0.18 105.3 21.5 69.8 18/16 18/16 C 1/2' I1.2X100N I1.2X110N20 1.20 110 0.56 0.060 0.006 10.0 0.20 120.9 37.1 69.8 20 18/16 C 2/3' I1.2X110N20 I1.2X140N18 1.20 140 1.01 0.033 0.010 18.2 0.43 81.0 21.5 45.5 18 18 C 1/2' I1.2X140N18 I1.2X170N 1.20 170 1.23 0.027 0.012 22.2 0.14 89.5 21.5 54.0 18/16 18/16 C 1/2' I1.2X170N I1.2X52N 1.20 52 0.67 0.050 0.007 12.0 0.12 56.5 14.5 28.0 16 18/16 C 1/2' I1.2X52N I1.2X57N 1.20 57 0.67 0.050 0.007 12.0 0.22 56.5 14.5 28.0 16 18/16 CS 1/2' I1.2X57N I1.2X65N 1.20 65 0.83 0.040 0.008 15.0 0.47 56.5 14.5 28.0 16 18/16 C 1/2' I1.2X65N I1.2X65N 1.20 65 1.11 0.030 0.011 20.0 0.47 56.5 14.5 28.0 16 18/16 C 1/2' I1.2X65N I1.2X70N16 1.20 70 0.90 0.037 0.009 16.2 0.12 102.0 34.0 54.0 16 16 C 1/2' I1.2X70N16 I1.2X82N 1.20 83 0.69 0.048 0.007 12.5 0.01 89.5 21.5 54.0 18/16 18/16 C 2/3' I1.2X82N J1.2X24N16 1.20 24 0.56 0.060 0.006 10.0 1.67 37.0 3.5 28.5 M15X0.5 16 C 1/2.5' J1.2X24N16 I1.3X53N 1.30 53 0.62 0.050 0.007 13.0 0.18 56.5 14.5 28.0 16 18/16 C 1/2' I1.3X53N I1.3X80NM 1.30 80 0.85 0.036 0.009 18.1 0.58 45.5 3.5 28.0 M15X0.5 18/16 C 1/2' I1.3X80NM J1.3X77N16 1.30 77 0.85 0.036 0.009 18.1 0.56 49.0 44.0 0.0 16 16 C 1/2' J1.3X77N16 J1.4X52N16 1.40 52 0.68 0.042 0.008 16.7 0.23 59.5 26.0 28.5 16 16 C 1/2' J1.4X52N16 I1.5X100N20 1.50 100 0.44 0.060 0.006 12.5 0.20 139.1 37.1 88.0 20 18/16 C 2/3' I1.5X100N20 型号 倍数 工作距 景深 数值孔径 分辨率 孔径F# 畸变% 镜身L0 L1 L2 d1 d2 接口 最大接收器 外形图下载 I1.5X108N 1.50 108 0.53 0.050 0.007 15.0 0.24 83.8 26.0 43.8 18/16 18/16 C 1/2' I1.5X108N I1.5X110N 1.50 110 0.73 0.036 0.009 20.6 0.24 81.0 6.5 60.5 16 18/16 C 1/2' I1.5X110N I1.5X110N18 1.50 110 0.73 0.036 0.009 20.8 0.20 81.0 21.5 45.5 18 18 C 1/2' I1.5X110N18 I1.5X115NM18 1.50 115 0.70 0.038 0.009 19.7 0.23 88.1 3.5 70.6 M15X0.5 18 C 1/2' I1.5X115NM18 I1.5X150N 1.50 150 0.74 0.036 0.009 20.8 0.12 89.5 21.5 54.0 18/16 18/16 C 1/2' I1.5X150N I1.5X150N 1.50 150 1.07 0.025 0.013 30.0 0.12 89.5 21.5 54.0 18/16 18/16 C 1/2' I1.5X150N I1.5X180N 1.50 180 0.86 0.031 0.011 24.2 0.15 89.5 21.5 54.0 18/16 18/16 C 1/2' I1.5X180N I1.5X220N16 1.50 220 1.07 0.025 0.013 30.0 0.05 102.0 34.0 54.0 16 16 C 1/2' I1.5X220N16 I1.5X50N 1.50 50 0.49 0.054 0.006 13.9 0.10 63.0 14.5 34.5 16 18/16 C 1/2' I1.5X50N I1.5X70NM 1.50 70 0.53 0.050 0.007 15.0 0.04 61.3 3.5 43.8 M15X0.5 18/16 C 1/2' I1.5X70NM I1.5X80N 1.50 80 0.53 0.050 0.007 15.0 0.04 56.5 14.5 28.0 16 18/16 C 1/2' I1.5X80N I1.5X80N 1.50 80 0.74 0.036 0.009 20.8 0.23 56.5 14.5 28.0 16 18/16 C 1/2' I1.5X80N I1.5X90N 1.50 90 0.60 0.044 0.008 16.9 0.10 123.5 21.5 88.0 18/16 18/16 C 2/3' I1.5X90N J1.5X102N16 1.50 102 0.70 0.038 0.009 19.7 0.08 60.0 34.0 21.0 16 16 C 1/2' J1.5X102N16 J1.5X65N16 1.50 65 0.53 0.050 0.007 15.0 0.28 55.5 6.5 44.0 16 16 C 1/2' J1.5X65N16 I1.5X50N 1.52 50 0.49 0.054 0.006 14.1 0.10 63.0 14.5 34.5 16 18/16 C 1/2' I1.5X50N I1.6X200N 1.60 200 0.93 0.027 0.012 29.6 0.05 105.3 21.5 69.8 18/16 18/16 C 1/2' I1.6X200N I1.7X65N 1.70 65 0.55 0.043 0.008 19.8 0.34 56.5 14.5 28.0 16 18/16 C 1/2' I1.7X65N I1.8X70N18 1.80 70 0.40 0.056 0.006 16.1 0.55 59.8 21.5 24.3 18 18 C 1/2' I1.8X70N18 I1.8X95N 1.80 95 0.53 0.042 0.008 21.4 0.80 89.5 21.5 54.0 18/16 18/16 C 1/2' I1.8X95N I1.8X46N 1.83 46 0.38 0.057 0.006 16.1 0.07 72.3 14.5 43.8 16 18/16 C 1/2' I1.8X46N I1.9X110N 1.90 110 0.45 0.047 0.007 20.2 0.30 96.0 21.5 60.5 18/16 18/16 C 2/3' I1.9X110N I2X110N 2.00 110 0.55 0.036 0.009 27.5 0.10 84.9 27.1 43.8 18/16 18/16 C 1/2' I2X110N I2X130N 2.00 131 0.67 0.030 0.011 33.3 0.10 90.5 14.5 62.0 16 18/16 C 1/2' I2X130N I2X150N18 2.00 150 0.75 0.027 0.013 37.5 0.08 102.1 6.5 81.6 16 18 C 1/2' I2X150N18 I2X195N18 2.00 195 1.00 0.020 0.017 50.0 0.04 117.1 6.5 96.6 16 18 C 1/2' I2X195N18 I2X350N20 2.00 350 0.80 0.025 0.015 40.0 0.10 168.3 36.6 117.7 20 18 C 2/3' I2X350N20 I2X40N18 2.00 40 0.05 0.085 0.004 11.8 0.20 81.0 21.5 45.5 18 18 C 1/2' I2X40N18 I2X45N18 2.00 45 0.37 0.054 0.006 18.5 0.01 81.0 21.5 45.5 18 18 C 1/2' I2X45N18 I2X60NM 2.00 60 0.40 0.050 0.007 20.0 0.10 79.5 3.5 62.0 M15X0.5 18/16 C 1/2' I2X60NM I2X63N 2.00 63 0.33 0.060 0.006 16.7 0.30 63.0 14.5 34.5 16 18/16 C 1/2' I2X63N I2X64N 2.00 64 0.40 0.050 0.007 20.0 0.03 72.3 14.5 43.8 16 18/16 C 1/2' I2X64N I2X65N 2.00 65 0.38 0.053 0.006 18.9 0.00 56.5 14.5 28.0 16 18/16 C 1/2' I2X65N I2x68N 2.00 68 0.34 0.058 0.006 17.2 0.36 63.0 14.5 34.5 16 18/16 C 1/2' I2x68N I2X70N 2.00 70 0.38 0.053 0.006 18.9 0.00 56.5 14.5 28.0 16 18/16 C 1/2' I2X70N 型号 倍数 工作距 景深 数值孔径 分辨率 孔径F# 畸变% 镜身L0 L1 L2 d1 d2 接口 最大接收器 外形图下载 I2X70NM 2.00 70 0.37 0.054 0.006 18.5 0.10 61.3 3.5 43.8 M15X0.5 18/16 C 1/2' I2X70NM I2X77N18 2.00 77 0.50 0.040 0.008 25.0 0.25 72.3 34.0 24.3 16 18 C 1/2' I2X77N18 I2X82N 2.00 82 0.43 0.047 0.007 21.3 0.08 63.0 14.5 34.5 16 18/16 C 1/2' I2X82N J2X18N16 2.00 18 0.28 0.071 0.005 14.1 0.78 49.0 44.0 0.0 16 16 C 1/1.8' J2X18N16 J2X43N16 2.00 44 0.57 0.035 0.010 28.6 0.10 55.5 6.5 44.0 16 16 C 1/2' J2X43N16 J2X50NM22 2.00 50 0.37 0.054 0.006 18.5 1.18 68.5 4.0 59.5 M20X0.75 22 C 1/2' J2X50NM22 I2.1X60N 2.10 60 0.32 0.060 0.006 17.5 0.30 63.0 14.5 34.5 16 18/16 C 1/2' I2.1X60N I2X260N20 2.10 260 0.68 0.028 0.012 37.5 0.53 156.5 36.6 105.9 20 18/16 C 1' I2X260N20 I2.5X110N 2.50 110 0.32 0.050 0.007 25.0 0.08 96.0 21.5 60.5 18/16 18/16 C 1/2' I2.5X110N I2.5X110N 2.50 110 0.44 0.036 0.009 34.4 0.08 96.0 21.5 60.5 18/16 18/16 C 1/2' I2.5X110N I2.5X150N18 2.50 150 0.43 0.037 0.009 33.8 0.05 112.6 21.5 77.1 18 18 C 2/3' I2.5X150N18 I2.5X18N 2.50 18 0.16 0.100 0.003 12.5 0.41 52.0 3.5 34.5 M15X0.5 18/16 C 1/2' I2.5X18N I2.5X65NM 2.50 65 0.28 0.058 0.006 21.6 0.15 79.5 3.5 62.0 M15X0.5 18/16 C 1/2' I2.5X65NM I2.5X70N18 2.50 70 0.31 0.052 0.006 24.0 0.07 81.0 21.5 45.5 18 18 C 1/2' I2.5X70N18 I2.5X90N 2.50 90 0.27 0.059 0.006 21.2 0.20 105.3 21.5 69.8 18/16 18/16 C 1/2' I2.5X90N J2.5X68N16 2.50 68 0.28 0.058 0.006 21.6 0.22 76.8 33.5 38.3 16 16 C 1/2' J2.5X68N16 I2.7X30N13.5 2.70 30 0.23 0.064 0.005 21.1 0.32 50.0 36.0 0.0 14 14 C 1/2.5' I2.7X30N13.5 I3X150N 2.80 150 0.39 0.037 0.009 37.8 0.04 123.5 21.5 88.0 18/16 18/16 C 2/3' I3X150N I3X110N 3.00 110 0.27 0.050 0.007 30.0 0.06 105.3 21.5 69.8 18/16 18/16 C 1/2' I3X110N I3X110N 3.00 110 0.37 0.036 0.009 41.3 0.06 105.3 21.5 69.8 18/16 18/16 C 1/2' I3X110N I3X25N13.5 3.00 25 0.14 0.093 0.004 16.1 0.37 45.9 31.9 0.0 14 14 C 1/2.5' I3X25N13.5 I3X68N 3.00 68 0.23 0.059 0.006 25.5 0.10 72.3 14.5 43.8 16 18/16 C 1/2' I3X68N I3X68N 3.00 68 0.30 0.045 0.007 33.3 0.10 72.3 14.5 43.8 16 18/16 C 1/2' I3X68N I3X70NM 3.00 70 0.05 0.060 0.006 25.0 0.25 79.5 3.5 62.0 M15X0.5 18/16 C 1/2' I3X70NM I3X90N 3.00 90 0.30 0.044 0.008 34.1 0.04 96.0 21.5 60.5 18/16 18/16 C 1/2' I3X90N I3.5X50N 3.50 50 0.23 0.050 0.007 35.0 0.04 81.0 6.5 60.5 16 18/16 C 1/2' I3.5X50N I3.5X68N 3.50 68 0.20 0.058 0.006 30.2 0.10 81.0 6.5 60.5 16 16/18 C 2/3' I3.5X68N I3.5X68N 3.50 68 0.20 0.058 0.006 30.2 0.10 81.0 6.5 60.5 16 16/18 C 2/3' I3.5X68N I4X110N18 4.00 110 0.28 0.036 0.009 55.0 0.03 126.4 6.5 105.9 16 18 C 1/2' I4X110N18 I4X135N18 4.00 135 0.31 0.032 0.010 62.5 0.03 141.4 21.5 105.9 18 18 C 1/2' I4X135N18 I4X140N18 4.00 140 0.05 0.025 0.013 80.0 0.06 126.4 6.5 105.9 16 18 C 1/2' I4X140N18 I4X60N 4.00 60 0.20 0.050 0.007 40.0 0.04 81.0 6.5 60.5 16 18/16 C 1/2' I4X60N I4X68N 4.00 68 0.17 0.059 0.006 34.0 0.10 90.5 14.5 62.0 16 18/16 C 1/2' I4X68N I4X70N 4.00 70 0.18 0.057 0.006 35.0 0.20 123.5 21.5 88.0 18/16 18/16 C 2/3' I4X70N I4.5X110N18 4.50 110 0.05 0.025 0.013 90.0 0.07 117.1 6.5 96.6 16 18 C 1/2' I4.5X110N18 型号 倍数 工作距 景深 数值孔径 分辨率 孔径F# 畸变% 镜身L0 L1 L2 d1 d2 接口 最大接收器 外形图下载 I4.5X75N 4.50 75 0.22 0.041 0.008 54.9 0.08 105.3 21.5 69.8 18/16 18/16 C 1/2' I4.5X75N I5X110N18 5.00 110 0.22 0.036 0.009 68.8 0.05 126.4 6.5 105.9 16 18 C 1/2' I5X110N18 I5X40N18 5.00 40 0.09 0.090 0.004 27.8 0.26 81.0 21.5 45.5 18 18 C 2/3' I5X40N18 I5X62N 5.00 62 0.12 0.064 0.005 38.9 0.17 96.0 21.5 60.5 18/16 18/16 C 1/2' I5X62N I5X82N 5.00 82 0.16 0.049 0.007 51.3 0.10 123.5 21.5 88.0 18/16 18/16 C 2/3' I5X82N I5X90N 5.00 90 0.15 0.054 0.006 46.3 0.25 123.5 21.5 88.0 18/16 18/16 C 1" I5X90N I5.5X56N 5.50 56 0.10 0.070 0.005 39.3 0.06 123.5 21.5 88.0 18/16 18/16 C 1/2' I5.5X56N I6X68N 6.00 68 0.11 0.060 0.006 50.0 0.10 123.5 21.5 88.0 18/16 18/16 C 1/2' I6X68N I7X43N18 7.00 43 0.06 0.090 0.004 38.9 0.04 108.4 14.5 79.9 16 18 C 1/2' I7X43N18 I8X58N 8.00 58 0.07 0.070 0.005 57.1 0.40 123.5 21.5 88.0 18/16 18/16 C 2/3' I8X58N 型号 倍数 工作距 景深 数值孔径 分辨率 孔径F# 畸变% 镜身L0 L1 L2 d1 d2 接口 最大接收器 外形图下载
