远心镜头,远心同轴光镜头 32-22
远心按头部外径分为以下三种:18c 以下,20或26,32。大部份远心镜头可以同时提供同轴光与非同轴规格。

1.采用物方远心设计,CCD标准接口,适用CCD尺寸:2/3',1/1.8',1/2',1/3',1/4',1/6',最大支持芯片尺寸祥见下表;
2.镜头头部外径32安装外径为22mm;

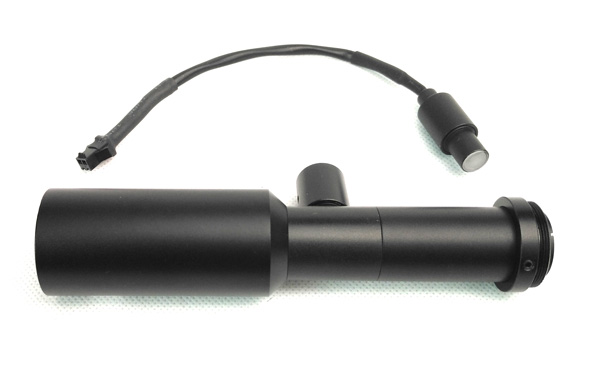

3.同轴光照明,附送远心专用LED同轴照明灯源(不含3.5V65mA电源),有8mm,10mm,14mm的光源接口,或8mm光纤转接口;
4.可以按用户要求定制其它倍率及工作距的镜头。


产品列表说明:
产品按放大率从小到大排列,相同放大率按工作距从小到大排列。

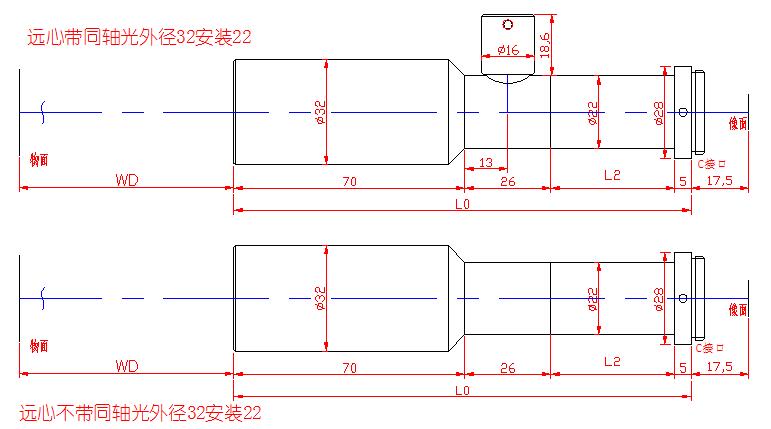

外形图在最后一列,图中WD表示工作距。型号中I表示直型,接着是放大率,X后面是工作距,
T表示远心,C表示同轴照明,最后面加数字表示头部外径或安装外径.

带同轴光型号 倍数 工作距 景深 数值孔径 分辨率 F/# 畸变% 远心度 镜身长 头部长 中间长 头部直径 中部直径 接口 CCD 型号
I0.3X68TC32 0.30 68 4.76 0.028 0.012 5.4 <0.11% 1' 130.50 70.0 29.5 32.0 22.0 C 1/2' I0.3X68T32
I0.3X110TC32 0.30 110 4.76 0.028 0.012 5.4 <0.02% 1' 122.00 70.0 21.0 32.0 22.0 C 1/2.5' I0.3X110T32
I0.3X110TC32 0.30 110 12.12 0.011 0.031 13.6 <0.02% 1' 122.00 70.0 21.0 32.0 22.0 C 1/2.5' I0.3X110T32
I0.3X150TC32 0.30 150 3.33 0.040 0.008 3.8 <0.2% 1' 122.00 70.0 21.0 32.0 22.0 C 1/3' I0.3X150T32
I0.3X180TC32 0.30 180 4.83 0.028 0.012 5.4 <0.32% 1' 122.00 70.0 21.0 32.0 22.0 C 1/3' I0.3X180T32
I0.3X200TC32 0.30 200 4.83 0.028 0.012 5.4 <0.3% 1' 122.00 70.0 21.0 32.0 22.0 C 1/3' I0.3X200T32
I0.3X280TC32 0.30 280 4.83 0.028 0.012 5.4 <0.17% 1' 118.10 70.0 17.1 32.0 22.0 C 1/3' I0.3X280T32
0.30 300 6.67 0.020 0.017 7.5 <0.26% 2.00 113.00 70.0 38 32.0 22.0 C 1/2' I0.3X300T32
0.30 450 8.89 0.015 0.022 10.0 <0.3% 2.00 117.5 70.0 42.5 32.0 22.0 C 1/2' I0.3X450T32
I0.33X650TC32 0.33 650 7.48 0.016 0.021 10.2 <0.9% 1' 108.00 70.0 7.0 32.0 22.0 C 1/3' I0.33X650T32
I0.35X68TC32 0.35 68 4.08 0.028 0.012 6.3 <0.05% 1' 134.50 70.0 33.5 32.0 22.0 C 1/2' I0.35X68T32
I0.4X150TC32 0.40 150 2.50 0.040 0.008 5.0 <0.2% 1' 122.00 70.0 21.0 32.0 22.0 C 2/3' I0.4X150T32
I0.4X305TC32 0.40 305 3.57 0.028 0.012 7.1 <0.5% 1' 117.50 70.0 16.5 32.0 22.0 C 2/3' I0.4X305T32
I0.45X150TC32 0.45 150 3.17 0.028 0.012 8.0 <0.25% 1' 128.50 70.0 27.5 32.0 22.0 C 2/3' I0.45X150T32
I0.45X150TC32 0.45 150 4.04 0.022 0.015 10.2 <0.25% 1' 128.50 70.0 27.5 32.0 22.0 C 2/3' I0.45X150T32
I0.45X150TC32 0.45 150 5.23 0.017 0.020 13.2 <0.25% 1' 128.50 70.0 27.5 32.0 22.0 C 2/3' I0.45X150T32
I0.45X150TC32 0.45 150 8.08 0.011 0.031 20.5 <0.25% 1' 128.50 70.0 27.5 32.0 22.0 C 2/3' I0.45X150T32
I0.47X280TC32 0.47 280 3.08 0.028 0.012 8.5 <0.6% 1' 122.00 70.0 21.0 32.0 22.0 C 1/2' I0.47X280T32
I0.5X135TC32 0.48 135 1.89 0.044 0.008 5.5 <0.14% 1' 134.50 70.0 33.5 32.0 22.0 C 2/3' I0.5X135T32
I0.5X45TC32 0.50 45 1.82 0.044 0.008 5.7 <0.05% 1' 154.50 70.0 53.5 32.0 22.0 C 1/2' I0.5X45T32
I0.5X68TC32 0.50 68 1.82 0.044 0.008 5.7 <0.1% 1' 148.00 70.0 47.0 32.0 22.0 C 1/2' I0.5X68T32
I0.5X110TC32 0.50 110 1.82 0.044 0.008 5.7 <0.05% 1' 160.50 70.0 59.5 32.0 22.0 C 1/2' I0.5X110T32
I0.5X110TC32 0.50 110 5.00 0.016 0.021 15.6 <0.05% 1' 160.50 70.0 59.5 32.0 22.0 C 1/2' I0.5X110T32
I0.5X110TC32 0.50 110 7.27 0.011 0.031 22.7 <0.05% 1' 160.50 70.0 59.5 32.0 22.0 C 1/2' I0.5X110T32
I0.5X150TC32 0.50 150 1.82 0.044 0.008 5.7 <0.08% 1' 134.50 70.0 33.5 32.0 22.0 C 2/3' I0.5X150T32
I0.5X180TC32 0.50 180 1.82 0.044 0.008 5.7 <0.07% 1' 143.50 70.0 42.5 32.0 22.0 C 2/3' I0.5X180T32
I0.5X265TC32 0.50 265 2.86 0.028 0.012 8.9 <0.4% 1' 125.50 70.0 24.5 32.0 22.0 C 1/2' I0.5X265T32
I0.5X350TC32 0.50 350 2.86 0.028 0.012 8.9 <0.8% 1' 119.00 70.0 18.0 32.0 22.0 C 1/2' I0.5X350T32
I0.5X500TC32 0.50 500 3.64 0.022 0.015 11.4 <0.8% 1' 120.50 70.0 19.5 32.0 22.0 C 1/2' I0.5X500T32
I0.5X510TC32 0.50 510 3.64 0.022 0.015 11.4 <0.8% 1' 120.50 70.0 19.5 32.0 22.0 C 1/2' I0.5X510T32
I0.5X550TC32 0.50 550 5.00 0.016 0.021 15.6 <0.9% 1' 114.50 70.0 13.5 32.0 22.0 C 1/2.5' I0.5X550T32
I0.5X630TC32 0.50 630 5.00 0.016 0.021 15.6 <0.9% 1' 118.50 70.0 17.5 32.0 22.0 C 1/2.5' I0.5X630T32
I0.5X700TC32 0.50 700 8.00 0.010 0.034 25.0 <0.9% 1' 122.00 70.0 21.0 32.0 22.0 C 1/2.5' I0.5X700T32
I0.53X110TC32 0.53 110 1.72 0.044 0.008 6.0 <0.02% 1' 134.50 70.0 33.5 32.0 22.0 C 1/2' I0.53X110T32
I0.5X250TC32 0.53 250 2.70 0.028 0.012 9.5 <0.4% 1' 129.50 70.0 28.5 32.0 22.0 C 1/2' I0.5X250T32
I0.6X68TC32 0.60 68 1.52 0.044 0.008 6.8 <0.7% 1' 134.50 70.0 33.5 32.0 22.0 C 2/3' I0.6X68T32
I0.6X150TC32 0.60 150 1.52 0.044 0.008 6.8 <0.05% 1' 160.50 70.0 59.5 32.0 22.0 C 2/3' I0.6X150T32
I0.6X240TC32 0.60 240 2.42 0.028 0.012 10.9 <0.6% 1' 133.00 70.0 32.0 32.0 22.0 C 2/3' I0.6X240T32
I0.7X330TC32 0.70 330 2.60 0.022 0.015 15.9 <0.7% 1' 143.50 70.0 42.5 32.0 22.0 C 1/2' I0.7X330T32
I0.7X340TC32 0.70 340 2.60 0.022 0.015 15.9 <0.7% 1' 143.50 70.0 42.5 32.0 22.0 C 1/2' I0.7X340T32
I0.7X410TC32 0.70 410 2.60 0.022 0.015 15.9 <0.6% 1' 147.50 70.0 46.5 32.0 22.0 C 1/2' I0.7X410T32
I0.8X65TC32 0.80 65 1.81 0.028 0.012 14.5 <0.15% 1' 160.50 70.0 59.5 32.0 22.0 C 2/3' I0.8X65T32
I0.8X110TC32 0.80 110 1.14 0.044 0.008 9.1 <0.5% 1' 143.50 70.0 42.5 32.0 22.0 C 2/3' I0.8X110T32
I0.8X150TC32 0.80 150 1.79 0.028 0.012 14.3 <0.9% 1' 134.50 70.0 33.5 32.0 22.0 C 2/3' I0.8X150T32
I1X360TC32 0.97 360 1.53 0.027 0.012 18.0 <0.6% 1' 143.50 70.0 42.5 32.0 22.0 C 2/3' I1X360T32
I1X350TC32 0.99 350 1.50 0.027 0.012 18.3 <0.6% 1' 143.50 70.0 42.5 32.0 22.0 C 2/3' I1X350T32
I1X65TC32 1.00 65 0.91 0.044 0.008 11.4 <0.4% 1' 160.50 70.0 59.5 32.0 22.0 C 2/3' I1X65T32
I1X145TC32 1.00 145 1.43 0.028 0.012 17.9 <0.6% 1' 145.50 70.0 44.5 32.0 22.0 C 2/3' I1X145T32
I1X150TC32 1.00 150 0.91 0.044 0.008 11.4 <0.4% 1' 160.50 70.0 59.5 32.0 22.0 C 2/3' I1X150T32
I1X530TC32 1.00 530 2.50 0.016 0.021 31.3 <0.55% 1' 151.50 70.0 50.5 32.0 22.0 C 2/3' I1X530T32
I1X630TC32 1.00 630 2.50 0.016 0.021 31.3 <0.33% 1' 160.50 70.0 59.5 32.0 22.0 C 1/2' I1X630T32
